Diamond Series – North American Edition

Whether you need a single artist trailer with a full kitchen and private bedroom, or a multi-station makeup unit with plenty of storage space, these large trailers cover it all. Offices designed with executive producers in mind offer distinct work spaces for colleagues, providing private areas to think or break comfortably.

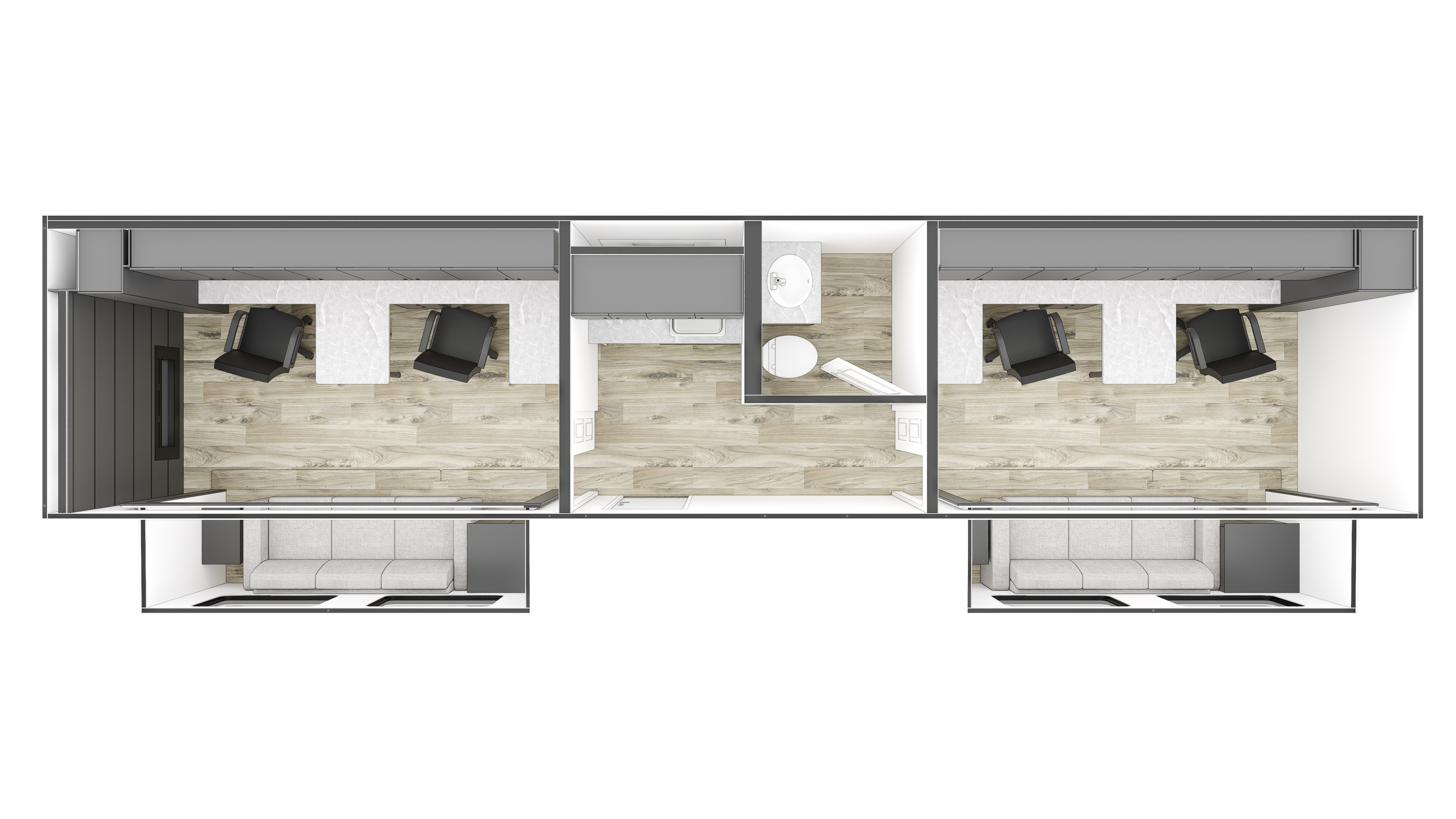

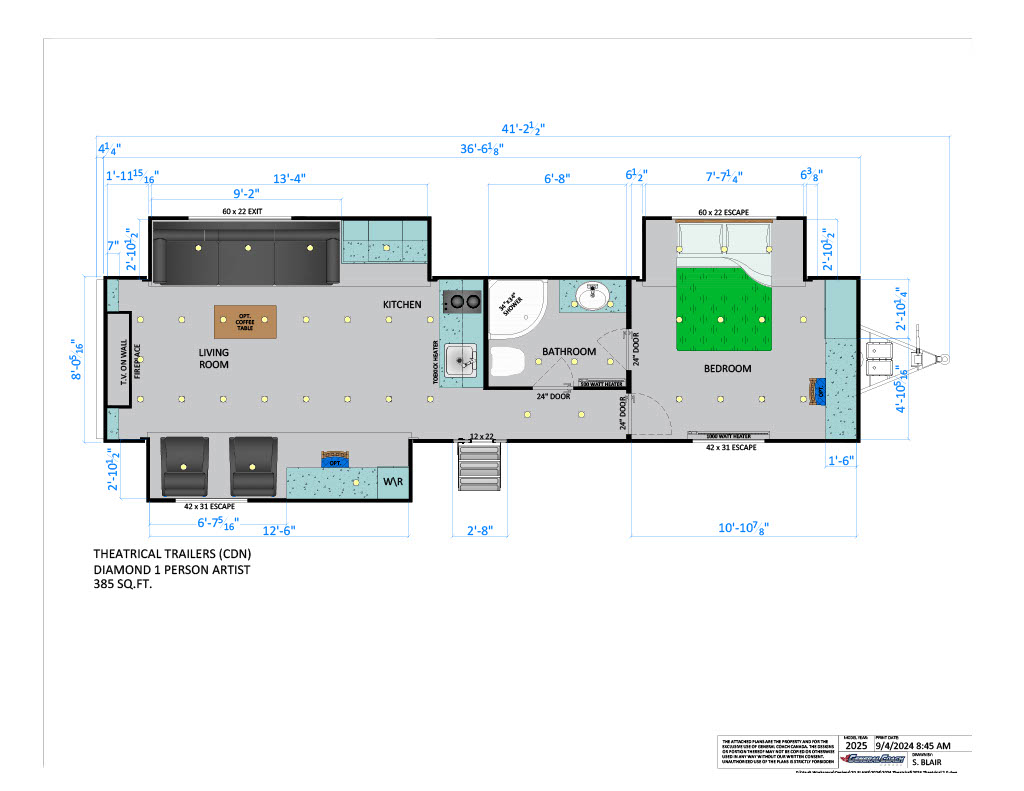

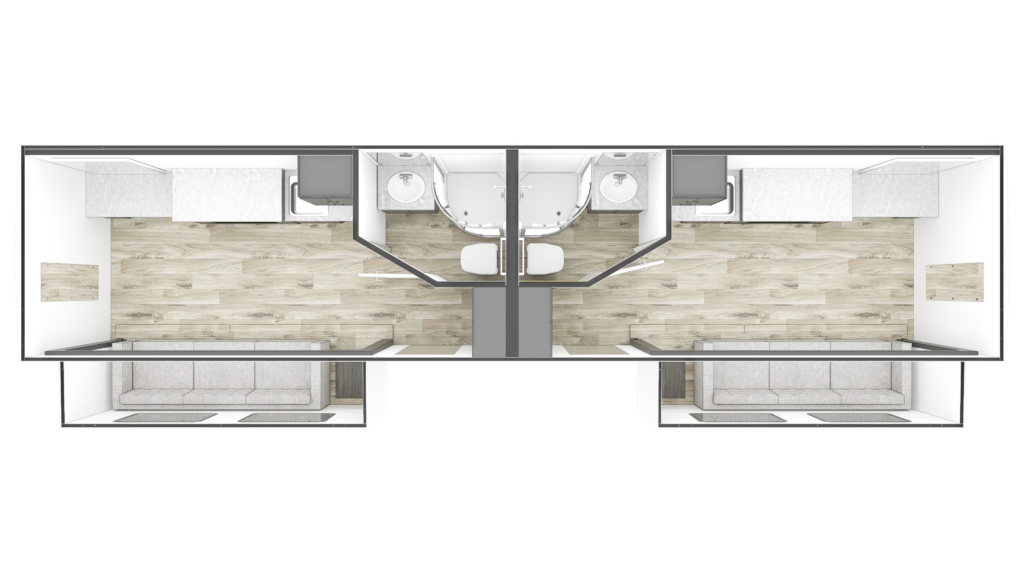

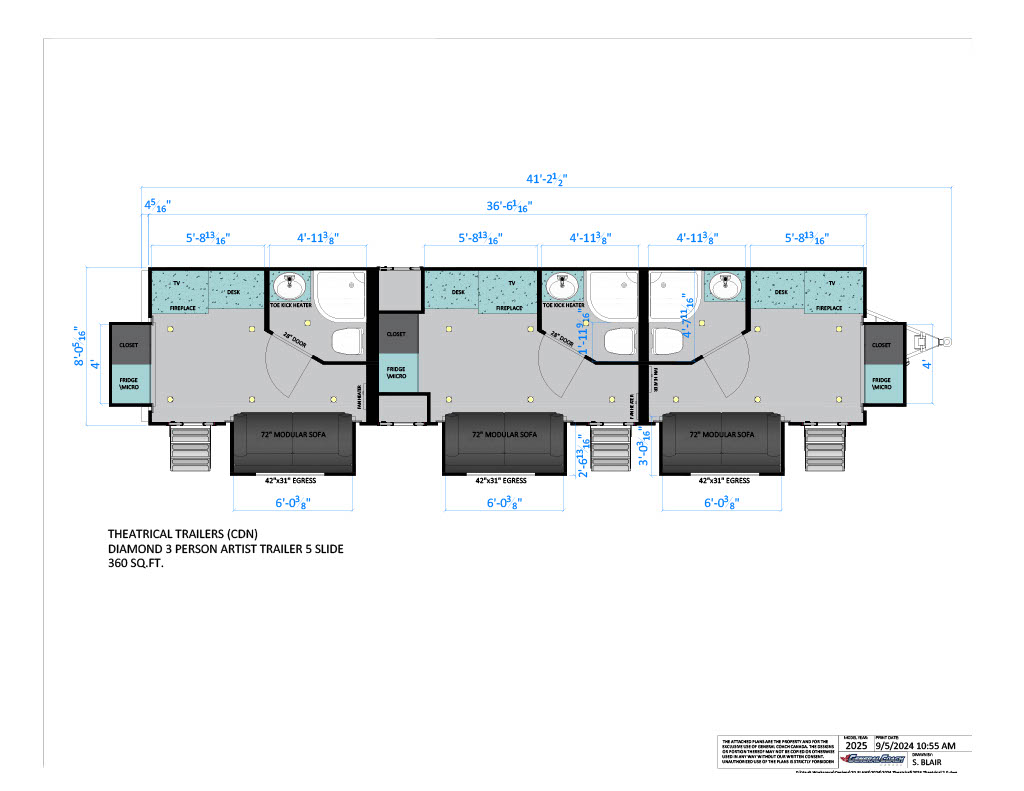

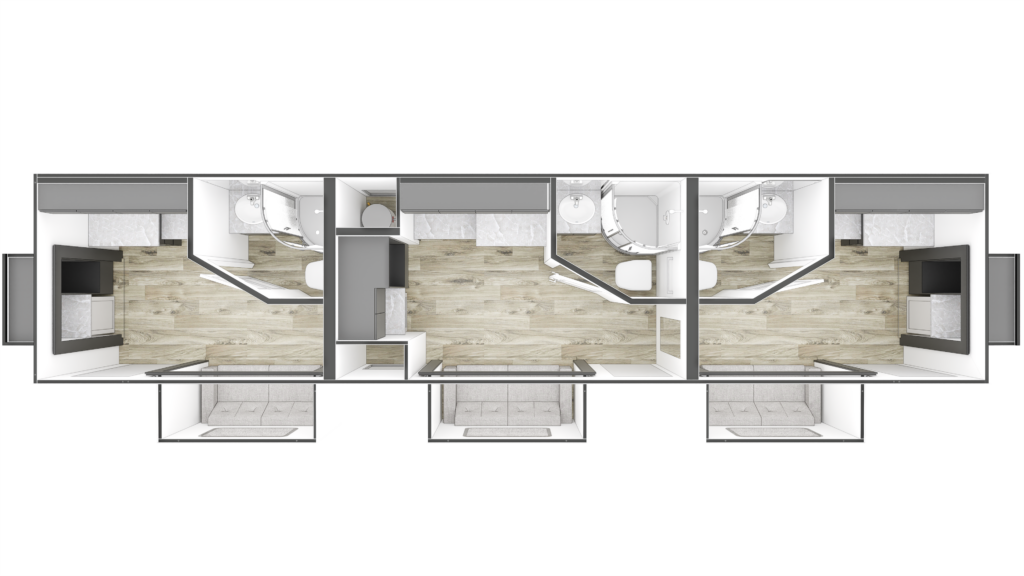

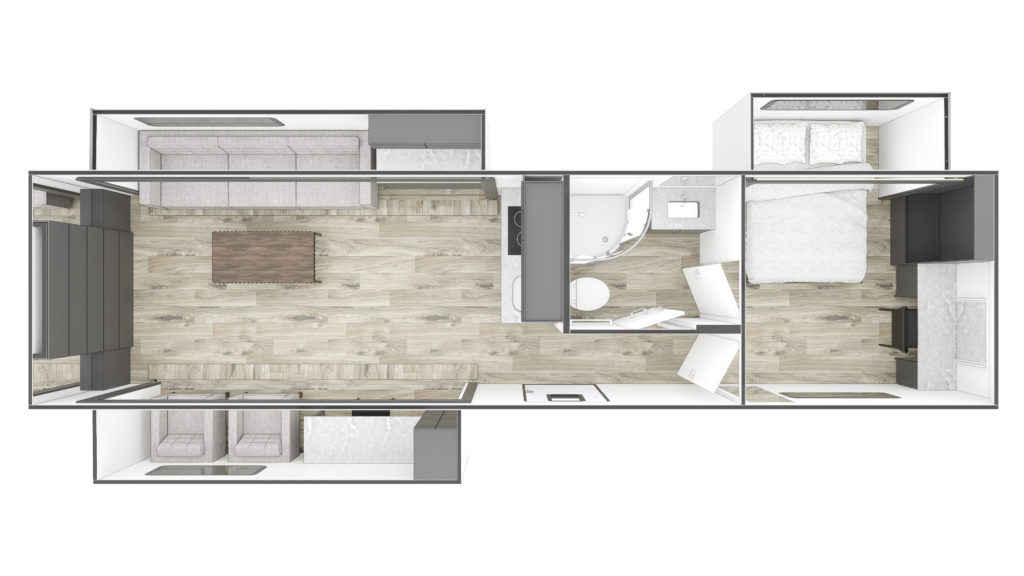

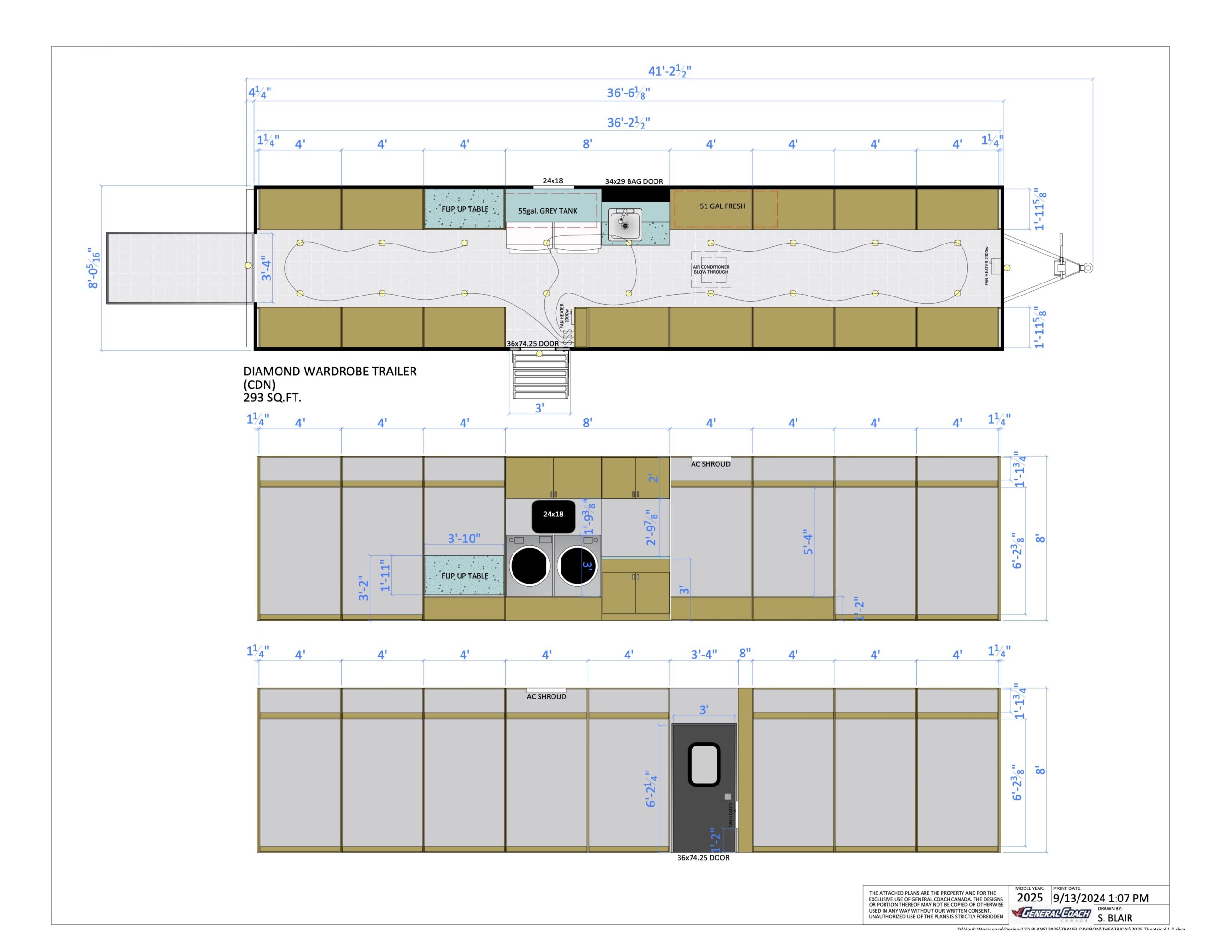

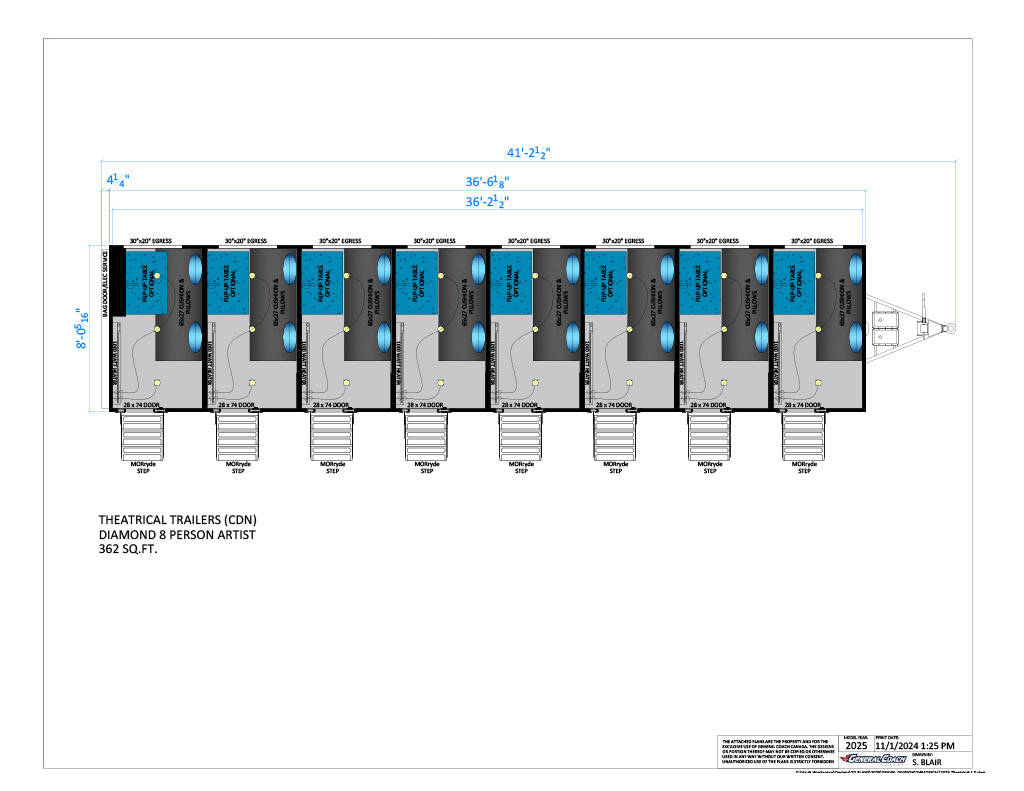

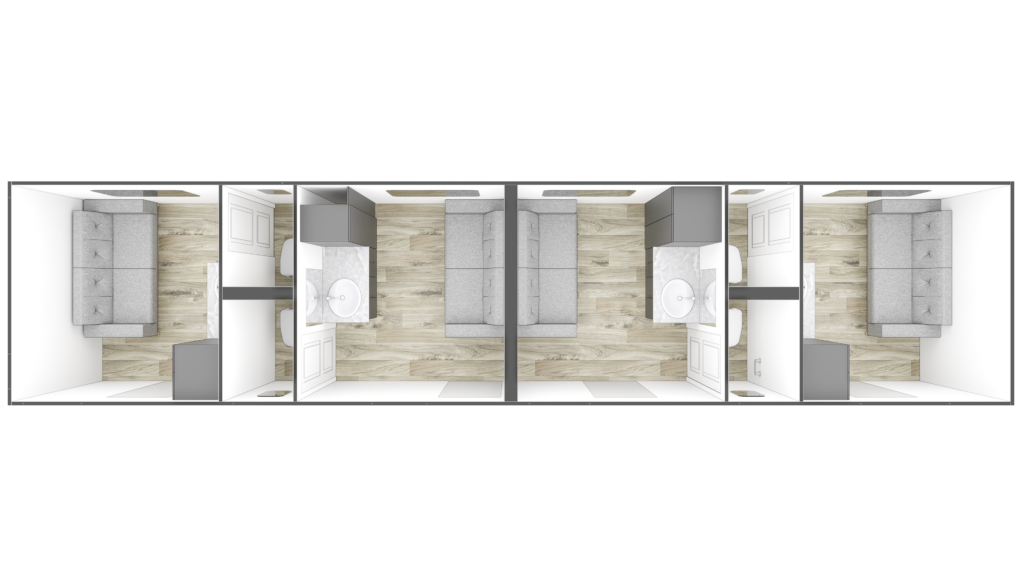

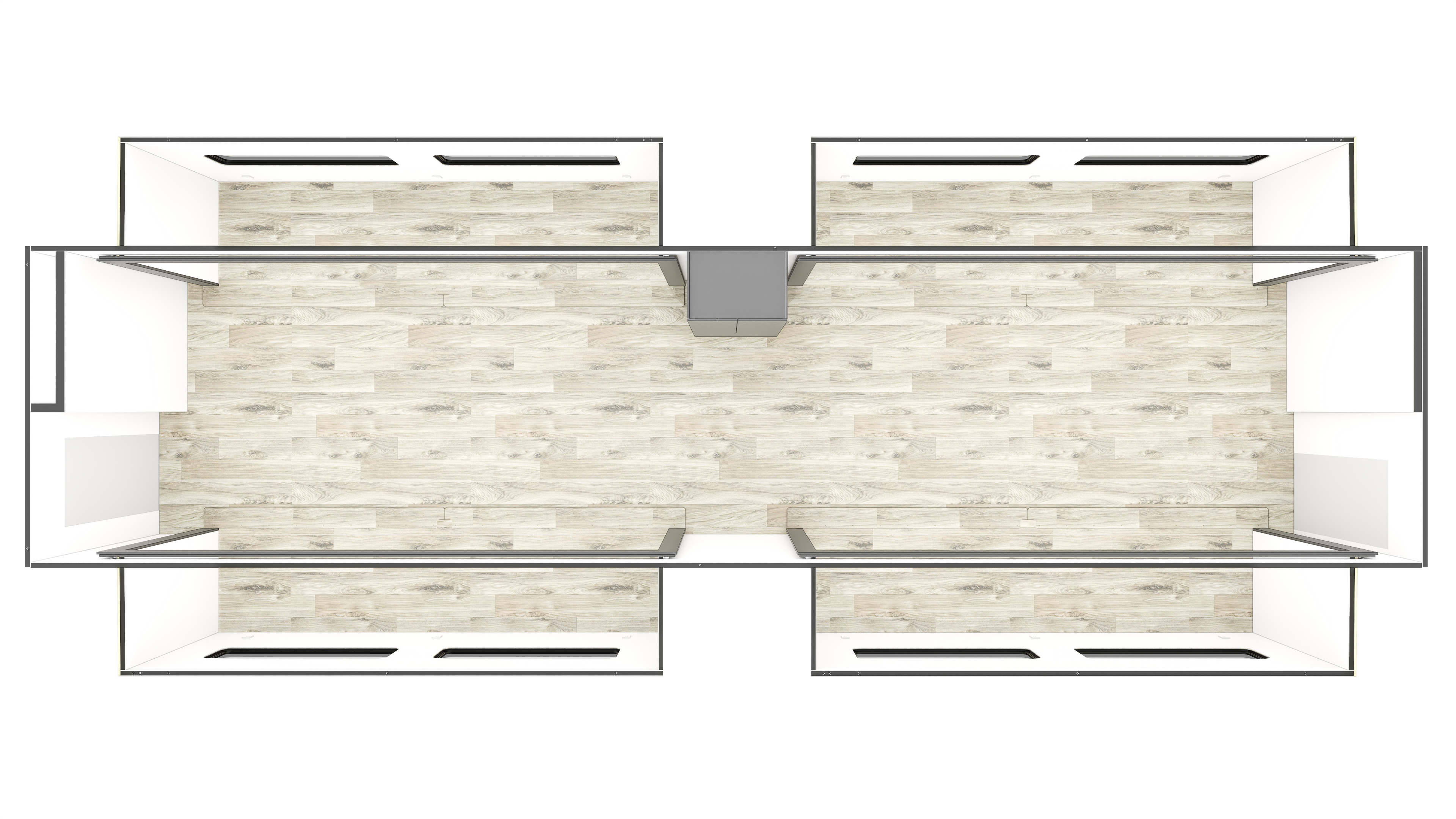

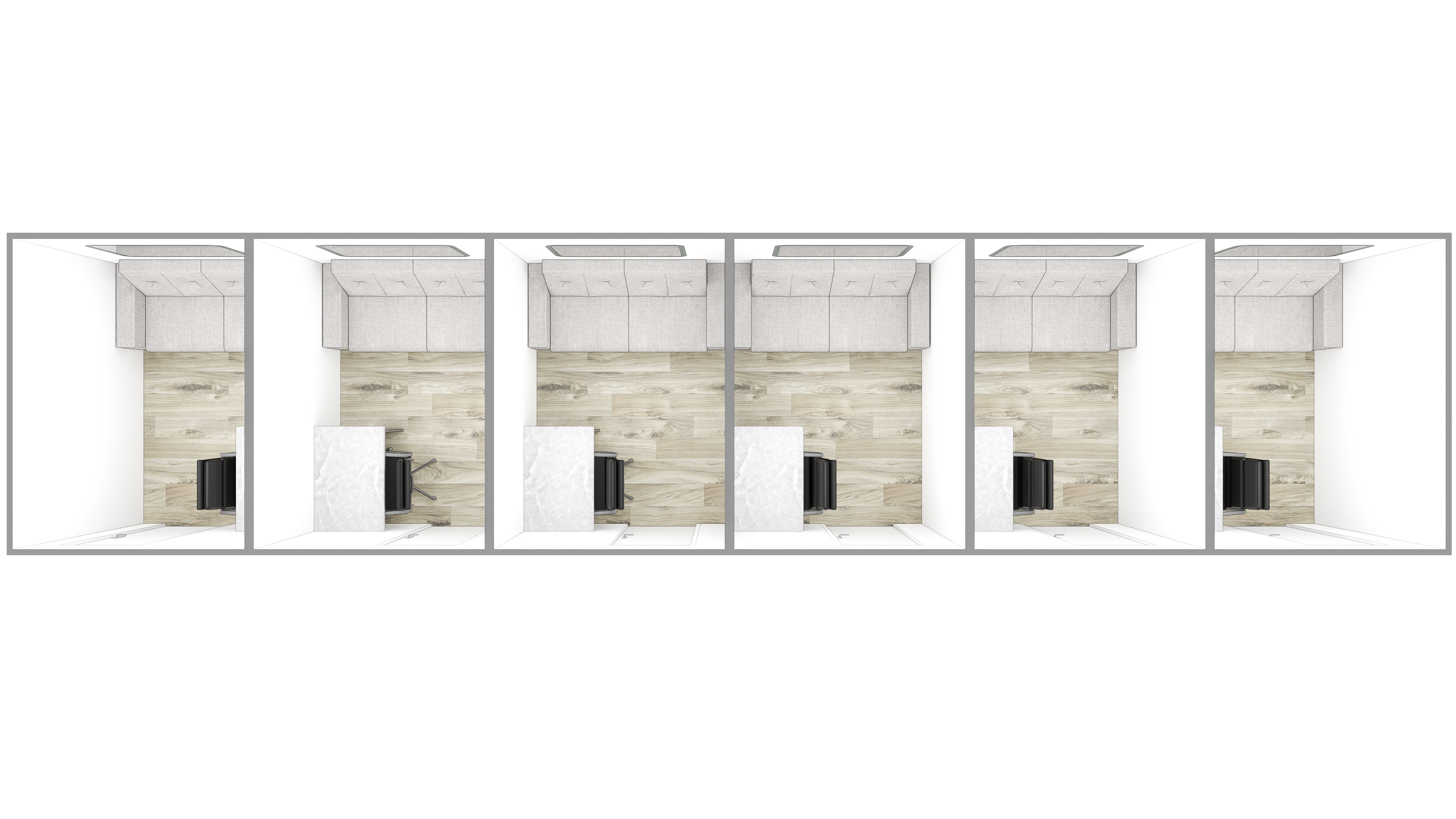

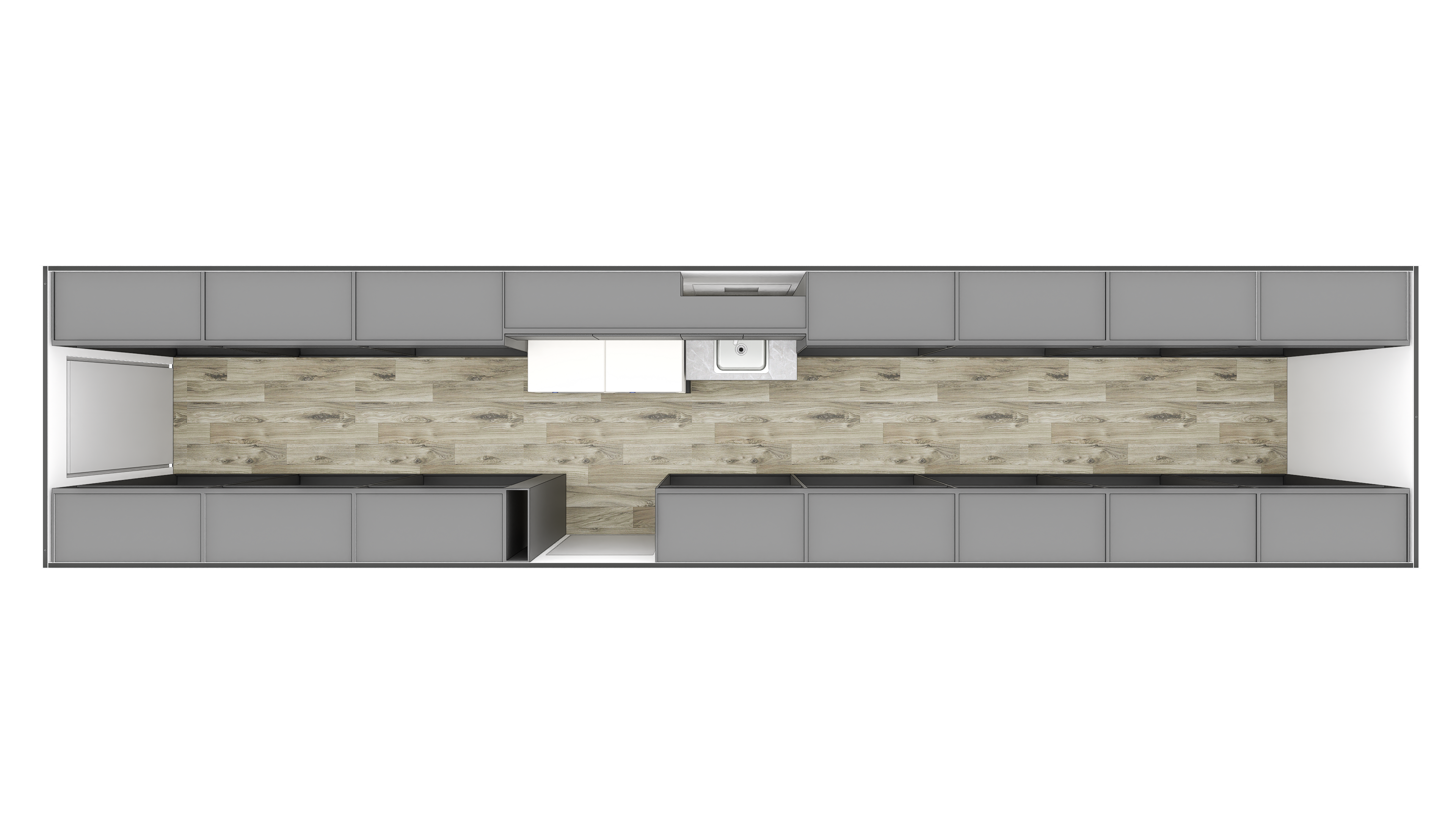

Browse Floor Plans

We offer a range of trailers to accommodate the various requirements of TV and movie production sets.

Quote this Floor Plan

Impermeable Walls

Custom walls are vacuum-bonded for airtight quality. The use of Azdel®, a lightweight composite waterproof panel, ensures no wicking and delaminating of material.

Built Tough

Built for rugged use in a variety of locations.

High Gloss Exteriors

Provides a clean and smooth look both inside and out

1 – Year
Factory consumer product warranty

5 – Year
Limited warranty for components and performance relating to structural integrity, weather penetration, electrical distribution system, plumbing and heating delivery systems, window and door performance. All Trailers are manufactured by General Coach Canada are constructed in compliance with the stringent standards of the C.S.A – Z240 Recreational Vehicle Standard.

The manufacturer reserves the right to improve or modify the product, without notice or obligation, which may change materials, equipment, specifications or designs. Photographs and descriptions may contain some standard features and some optional extras. Some options may only be available on a pre-production basis.

Diamond Series - North American Specifications

Diamond Series Theatrical Trailers are VCA Type III Approved.

Construction

  • 90” Sidewall Height
  • Floor 2×4 Frame with R20 Insulation
  • Roof Wood Trusses with R8 Insulation
  • Vinyl Flooring
  • 2” Seamless Bonded Walls with Aluminum Framing – Vinyl Interior
  • Fiberglass Gelcoat Exterior with Azdel Backer
  • In Frame Slide Outs with Flush Floor Transitions

Windows And Doors

  • Square Non-Friction Entrance Door, No Screen
  • Fold Out Step and Extended Grab Bar
  • Slide Toppers
  • Cordless Roller Shade
  • Satin Nickel Hardware

Heating And Cooling

  • 5-10 Gal 240V 3000W Water Heater
  • Propane Furnace (Optional)
  • 240V Electric Heat
  • 120V Dometic 13,500 BTU Air Conditioning
  • Napoleon Fireplace

Electrical

  • Cam Locks Shore Power
  • Smoke Alarm 9V
  • 100A 48 Circuit Panel/DC Distribution Panel
  • 55A 120V Converter
  • 12V LED 4” Pot Lights
  • 12V LED Light Over Entry Door and Front End Wall

Plumbing

  • 85 Gal Fresh Water Tank (Most Floor Plans)
  • 40 Gal Black and Grey Waste Tanks (Most Floor Plans)
  • 12V Shurflo Water Pump

Kitchen & Bathroom

  • Rolltop Countertops
  • Modular Residential Melamine Cabinets
  • Modern Flat Panel Cabinet Doors
  • Moen Faucets
  • Induction Cooktop (Single Artist)
  • 1.0 Cuft Stainless Steel Microwave
  • Stainless Steel Beverage Fridge
  • 12V Bath Fan (Manual Lid)
  • Neo Round Shower with Glass Door

Frame & Axels

  • Tube Chassis with Epoxy Paint
  • Undercarriage Driver Tray
  • 3x 6000lbs Torflex Axles
  • Tires 3400lbs With Aluminum Rim
  • 14,000lb Hitch
  • 7500lb Scissor Stabilizer Jacks (X4)
  • White Embossed Skirting
  • Diamond Plated Wheel Fender
