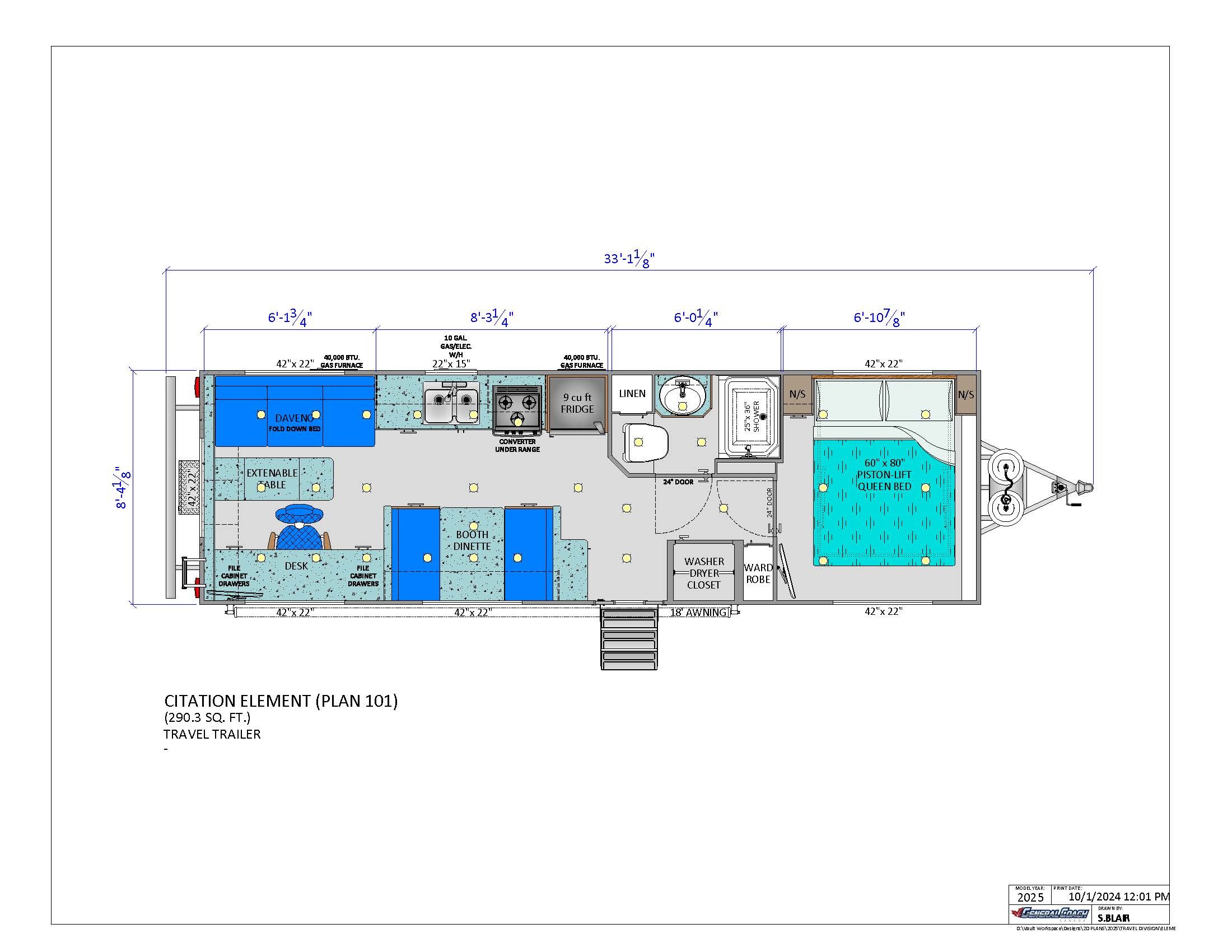

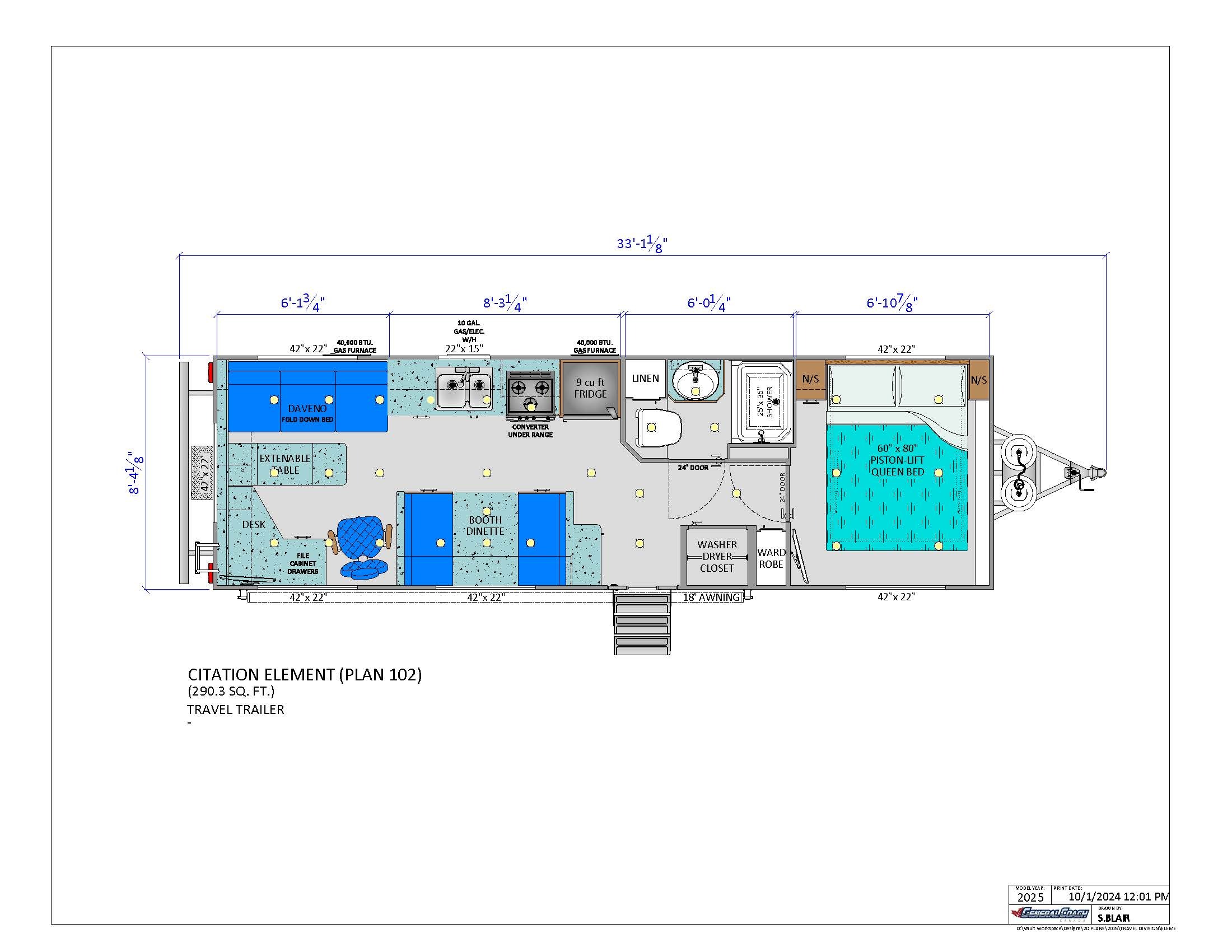

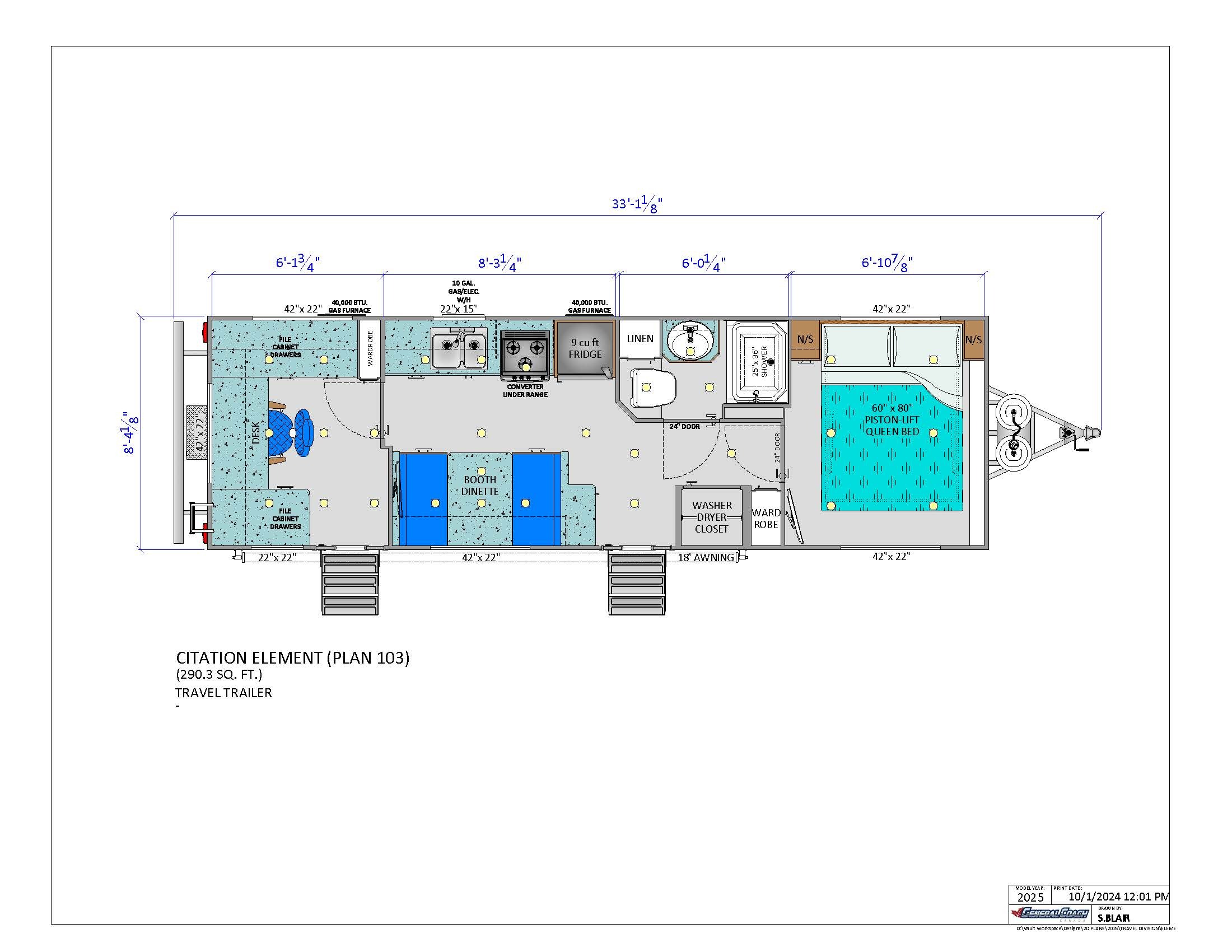

Browse Floor Plans
In the United States? Look for floor plans labelled “US Edition”.

Luxury Built Tough
We made these unit extra tough to stand up to oil patch conditions.

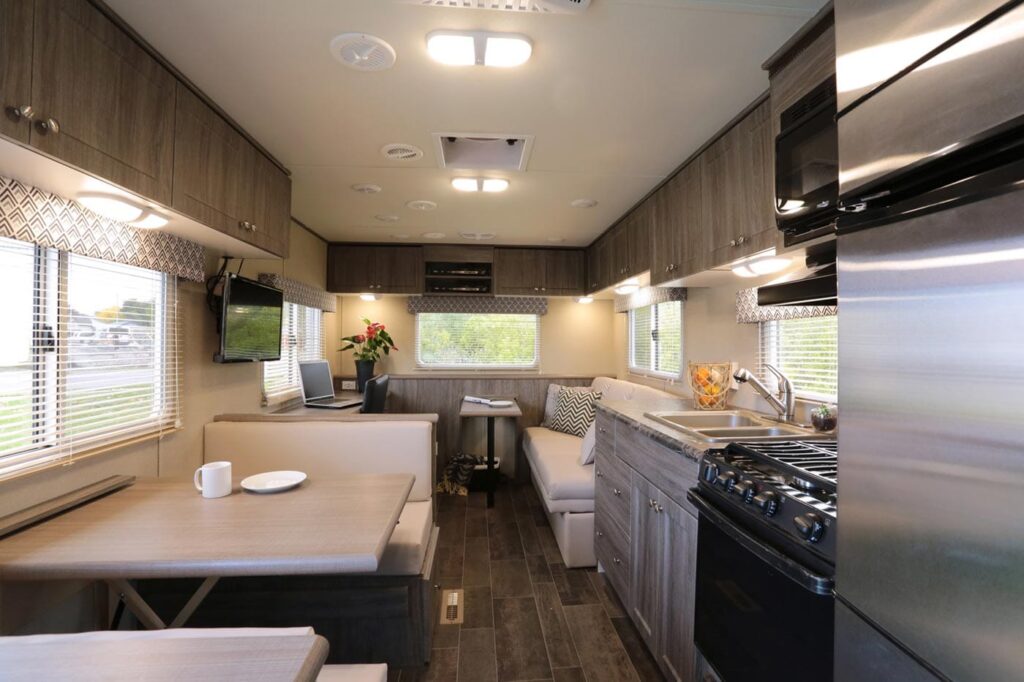

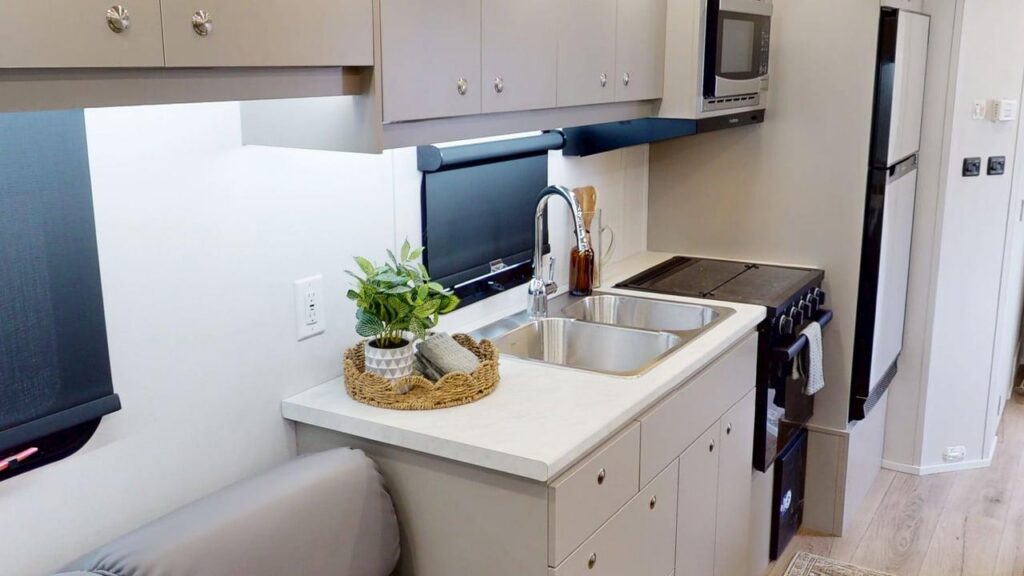

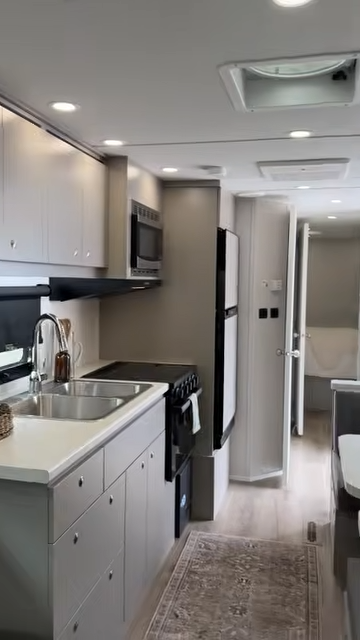

Full Functioning Kitchen
No need to compromise on your comfort with fully equipped kitchens.

Impermeable Walls
Custom walls are vacuum bonded for airtight quality. The use of Azdel®, a light weight composite waterproof panel, ensures no wicking and delaminating of material.
1 – Year
Factory consumer product warranty
5 – Year
Limited warranty for components and performance relating to structural integrity, weather penetration, electrical distribution system, plumbing and heating delivery systems, window and door performance. All Trailers are manufactured by General Coach Canada are constructed in compliance with the stringent standards of the C.S.A – Z240 Recreational Vehicle Standard.
The manufacturer reserves the right to improve or modify the product, without notice or obligation, which may change materials, equipment, specifications or designs. Photographs and descriptions may contain some standard features and some optional extras. Some options may only be available on a pre-production basis.
Citation Element Specifications
All Citation Element trailers manufactured by General Coach Canada are constructed in compliance with the stringent standards of the C.S.A. – Z241 Park Model Standard.

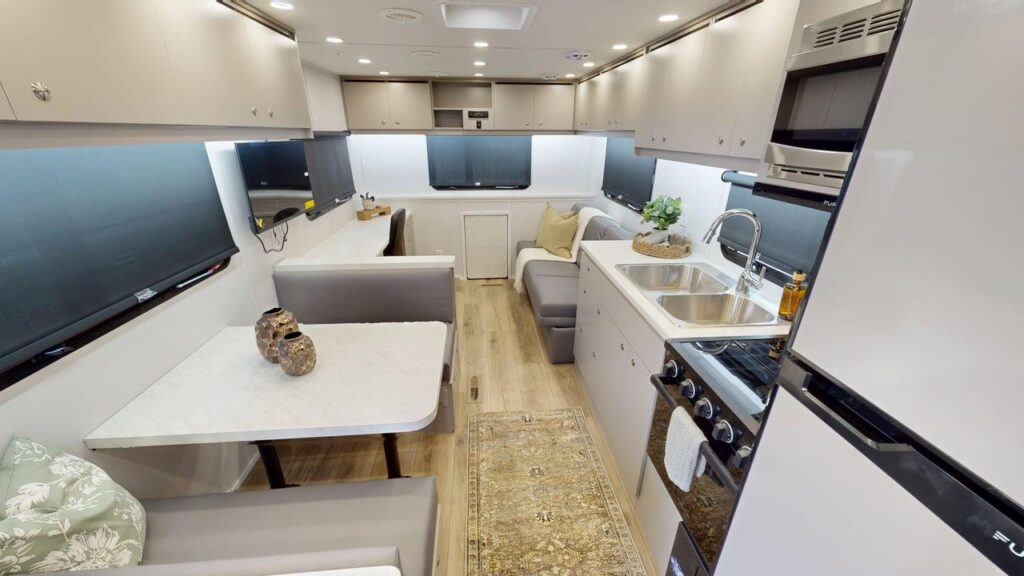

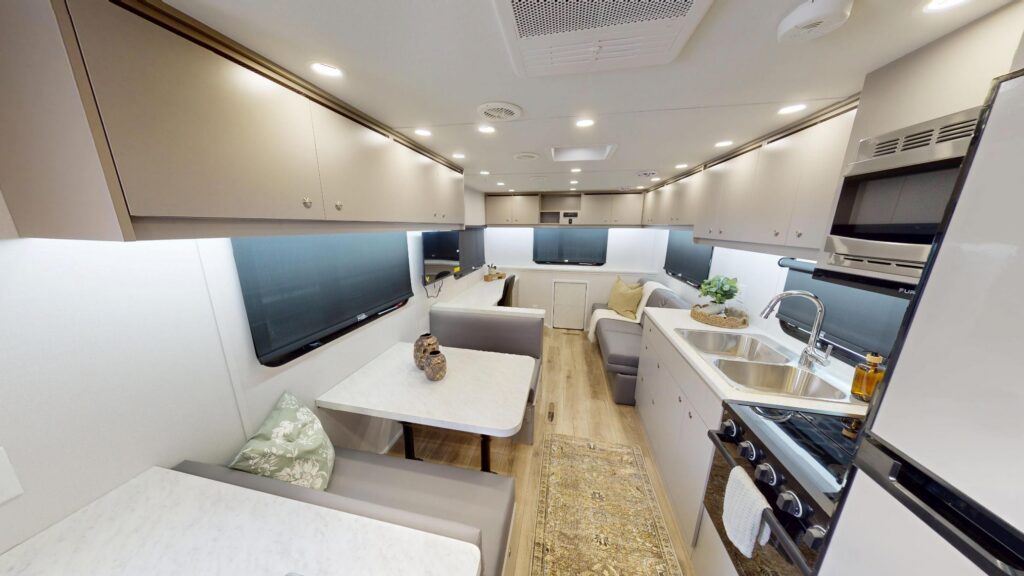

Interior Design
- Colour Coordinated Vinyl Interior Walls
- 5/8” T&G Plywood Decking W/ Fiberglass Insulation
- Commercial Vinyl Flooring Throughout
- Modular Cabinets W/ Slab Panel Door & Drawer Fronts
- Blum® Soft Close European Hinges And Drawer Glides
- Compression Lever Latch Cabinet Pulls
- Flush Mount LED Pot Lights Throughout
- Roller Blinds Throughout

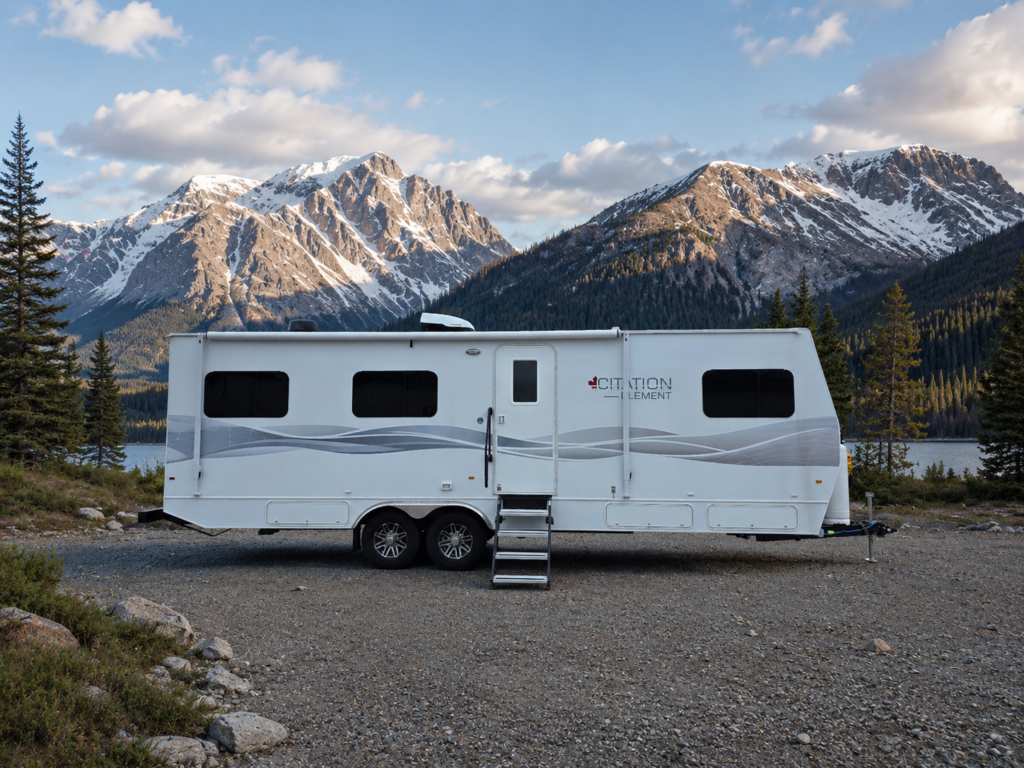

Exterior Design
- Seamless 2” Vacuum Bonded Walls W/ EPS Insulation
- High Gloss Fiberglass Exterior Finish
- Diamond Plate Rock Guard Front End Wall
- Custom Designed Fiberglass Wheel Skirt W/ Insignia
- Wooden Trusses W/ 3/8” Plywood Decking
- One Piece Rolled Diflex Roof W/ Drip Rails
- Diamond Plate Power Cord Storage Box @ Rear
- Exterior Storage Compartments W/ Locking Doors
- Thermal Pane Frameless Windows
- Dexter® Entrance Door W/ Screen & Deadbolt
- Large Swing Out Assist Handle
- Assist Ladder @ Rear Of Unit
- LED Lighting – Entrance, Storage Compartments, Hitch & Sewer Termination Area, Tail & Clearance Lights
- License Plate Bracket W/ LED Light
- City Water & Fresh Water Tank Inlets
- Black Tank Flush System
- GFI Protected 120Volt Duplex Receptacle
- 400W – 12V Solar Package W/ Interior Monitor (Optional)
- 18’ Manual Patio Awning (Optional)
- Dometic® Penguin™ 13,500BTU Air W/ Heat Strip

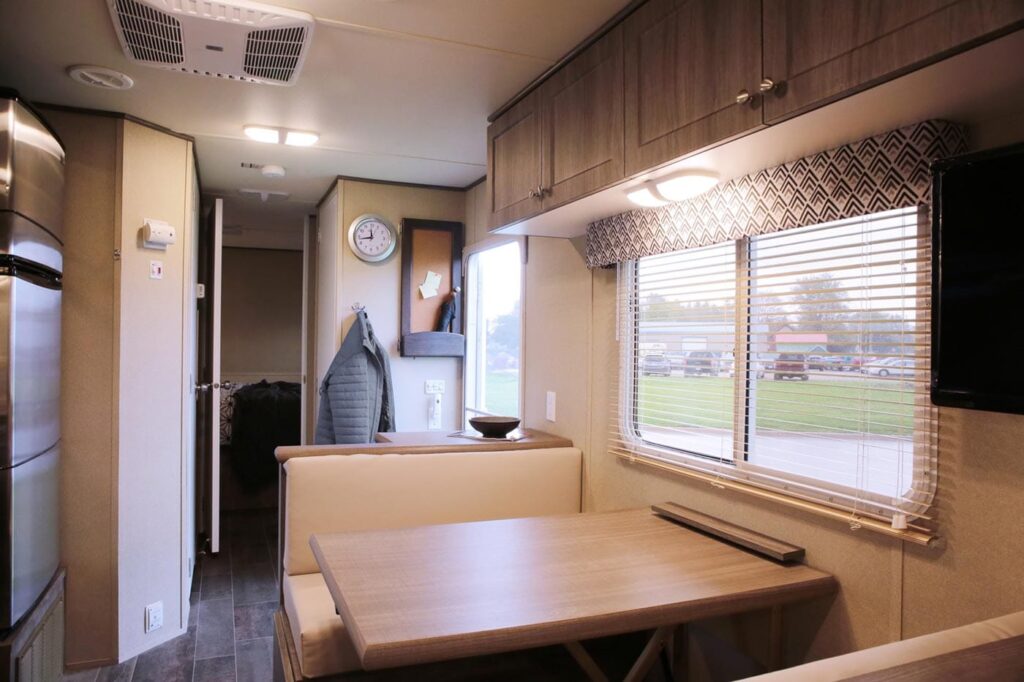

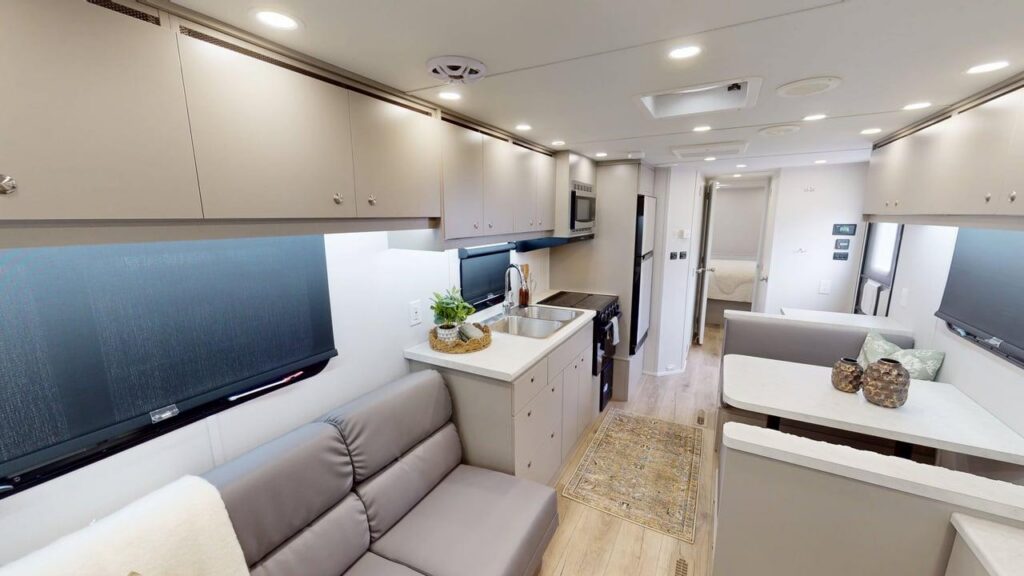

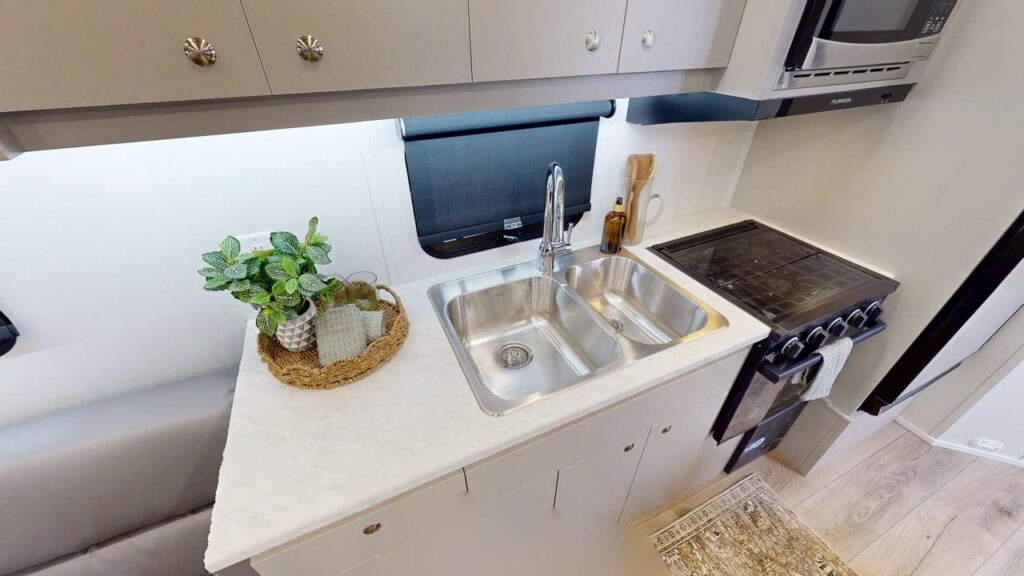

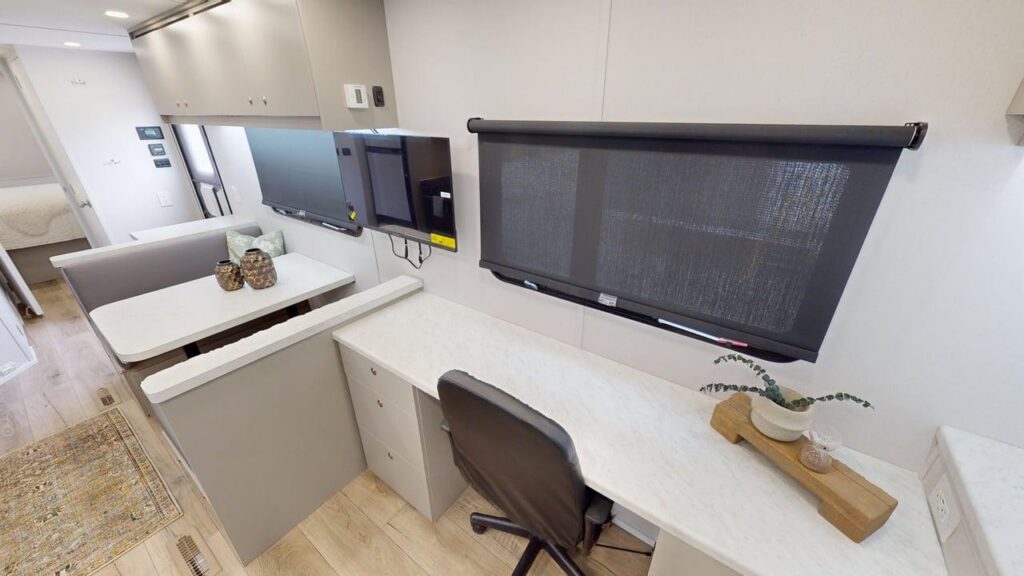

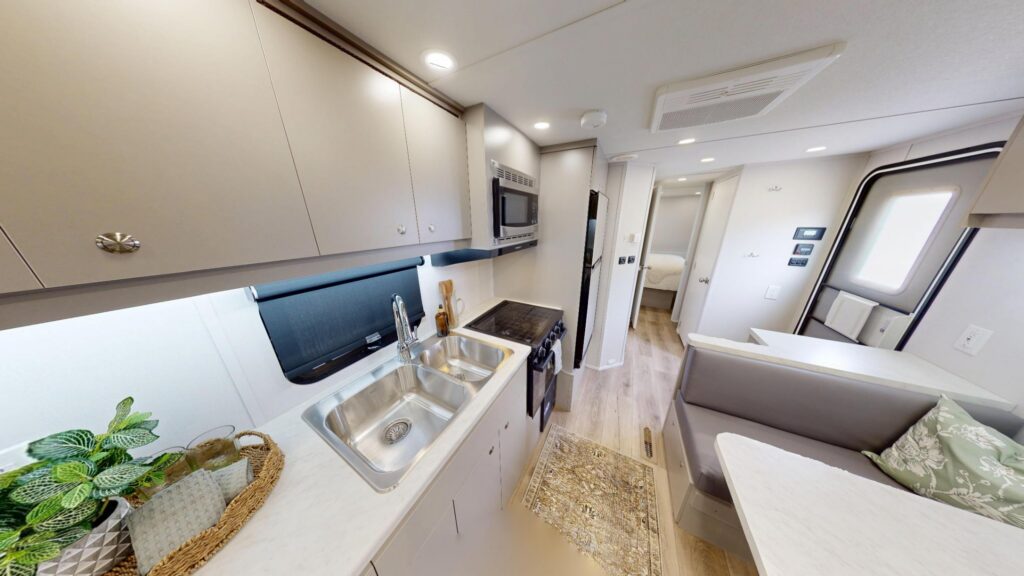

Dining & Lounge Features
- Furrion® Three Burner Cooktop And Oven (21”)
- Furrion® Vent Hood W/ Light
- Hight Pointe Built-In Microwave Oven
- GE® 12Cu.Ft. 110V Fridge W/ Bottom Freezer
- Laminate Countertop & Dinette Table
- Booth Dinette W/ Storage Drawers
- Stainless Double Sink W/ Cutting Board Cover
- Moen® Kitchen Faucet
- 100% PVC Lounge & Dinette Seating
- Maxx Air Vent Fan W/ Rain Sensor

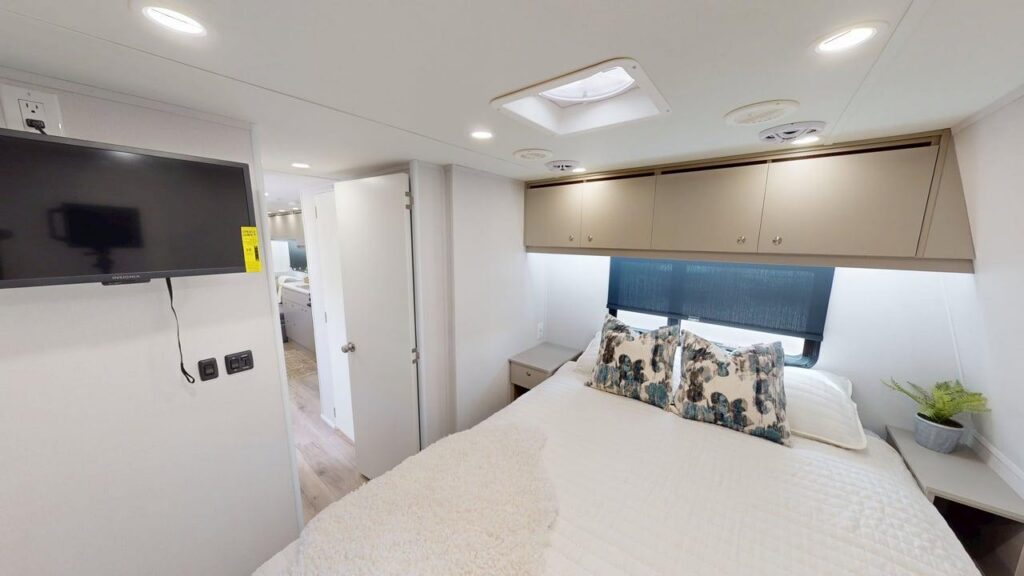

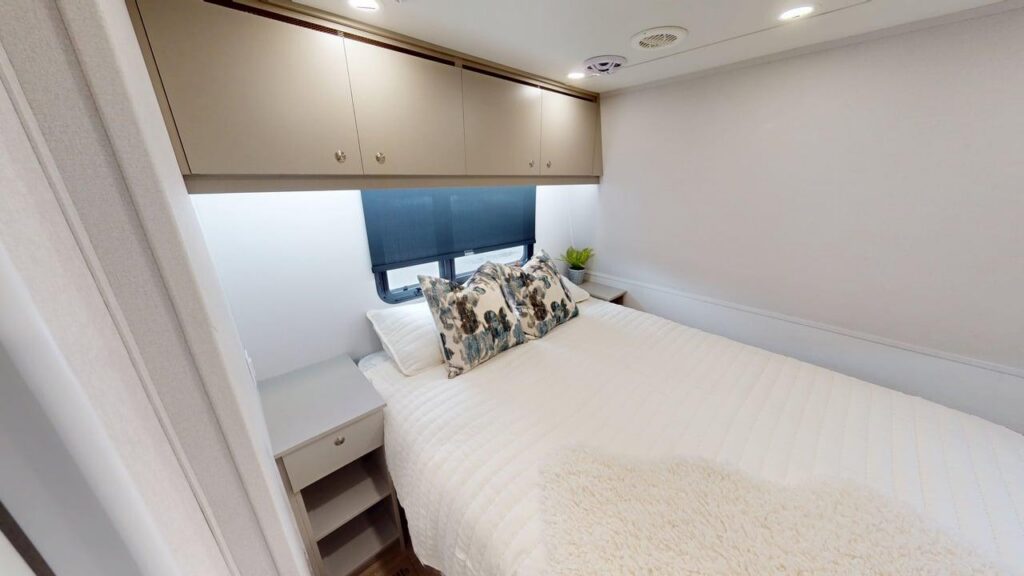

Bedroom Features
- Queen Mattress W/ Bedspread, Pillows & Shams
- Large Under Bed Storage Compartment W/ Piston Lift
- USB Outlets @ Bed Sides
- Maxx Air Vent Fan W/ Rain Sensor
Bathroom Features
- Stainless Steel Sink
- Moen® Vanity Faucet
- Dometic® Traveller Lite – China Foot Flush W/ Sprayer
- Fiberglass Enclosed Shower Stall W/ Shower Curtain
- Removable Hand-Held Shower Head
- Tinted Skylight Over Shower – Dual Pane
- Towel Holders On Bathroom Door
- Medicine Cabinet W/ Mirror Door
- Maxx Air Dome Vent Fan
Chassis & Frame
- 14” Heavy Duty Box Steel Chassis & A-Frame
- Commercial Grade Epoxy Hand Painted Undercarriage
- Enclosed Underbelly W/ Heated, Insulated Tanks
- Morryde Fold Out Entrance Step @ Door
- 6000Lb Spring Axles W/ Shocks & Equalizer
- ST235/80R16 Tires On 16” Aluminum Rims, Balanced
- Full Size Spare W/ Undermount Bracket
- Manual Front & Rear Scissor Stabilizer Jacks
- 14,000Lbs Heavy Duty Coupler Hitch
- Standard 2 5/16” Ball Coupler
- Bulldog® 5,000Lbs Heavy Duty Hitch Jack
- 2X 100Lb LP Tanks W/ Auto 2-Stage Regulator
Other Features
- Generator Ready
- 2X 40K BTU Ducted Furnace
- Coat Hook @ Entrance Door
- Stereo System & Television W/ Mount
- Central Vac (Optional)
- Fire Extinguisher (Dry Chemical)
- Powered LP/ CO Leak & Smoke Detectors
- Winterization By-Pass Valve
- 12V Battery Disconnect
- 5 Year General Coach Limited Structural Warranty (Non-Transferable)
