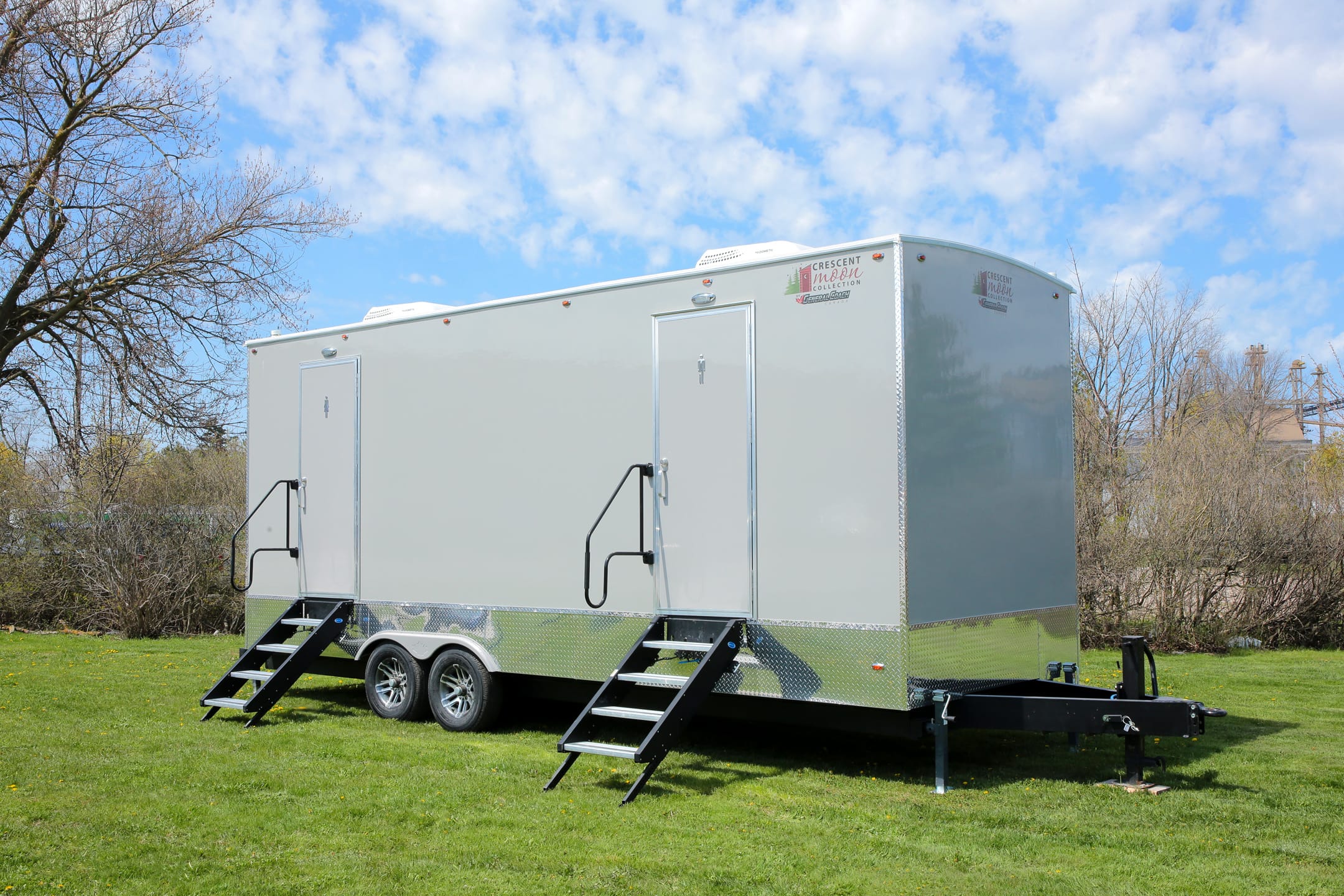

Lunar Moon – Restroom Trailers

Designed for any application, these washroom trailers have a variety of uses. With several standard features and a range of available combinations, including shower and laundry, you are sure to find a plan that meets your needs. If you require a custom design we will work with you to custom design a plan that does. Wheelchair accessible solutions also available.

Up to 8 Private Room Washrooms

72 - 264 sq. ft.

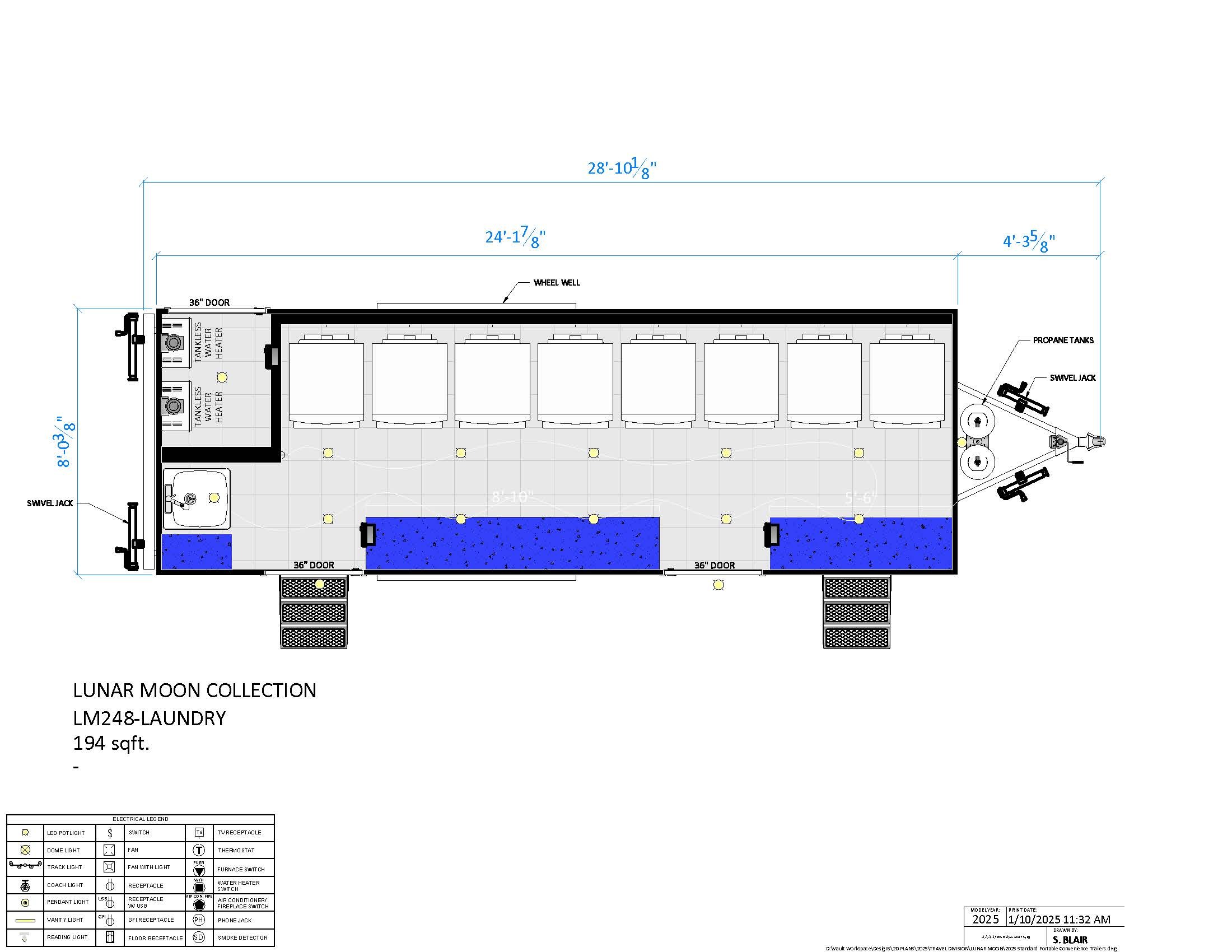

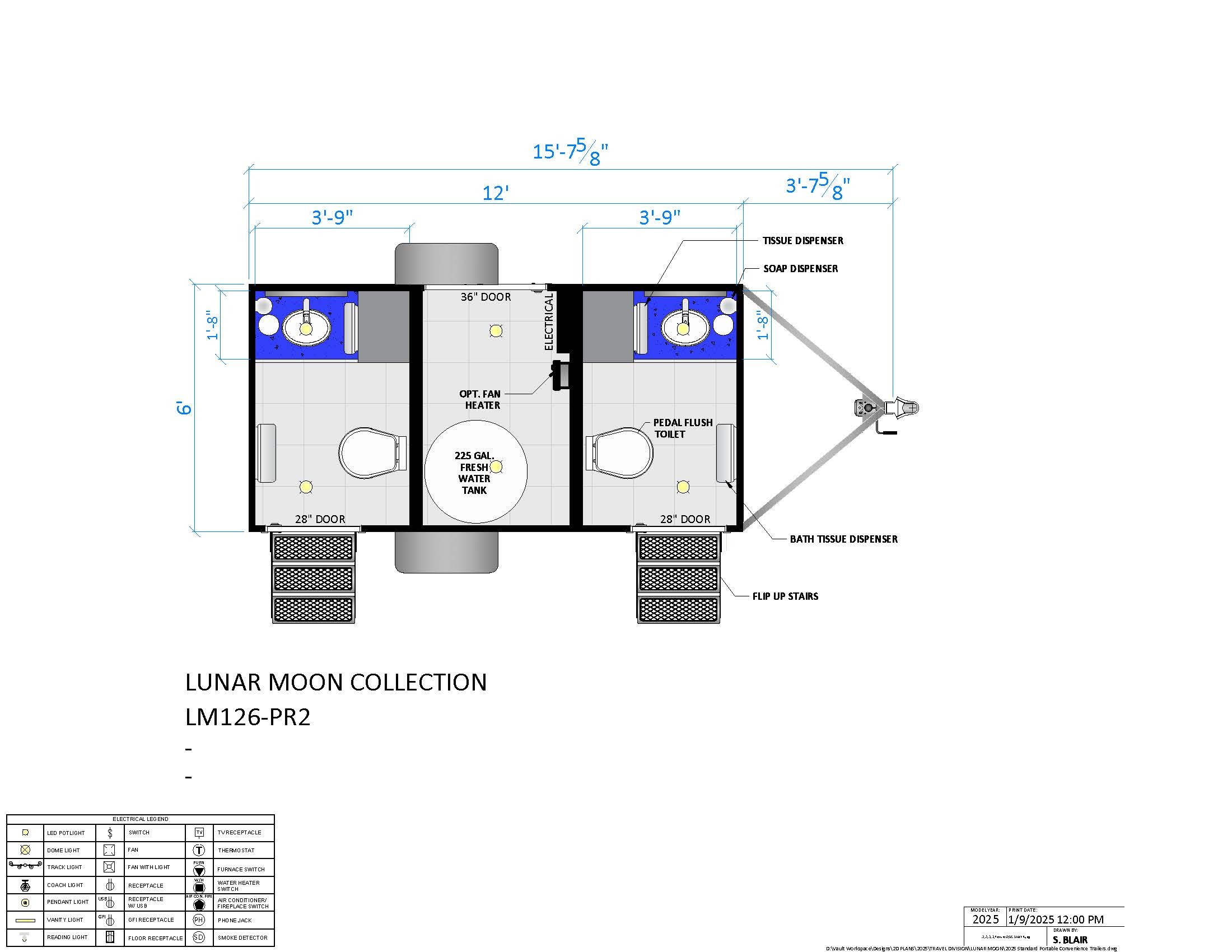

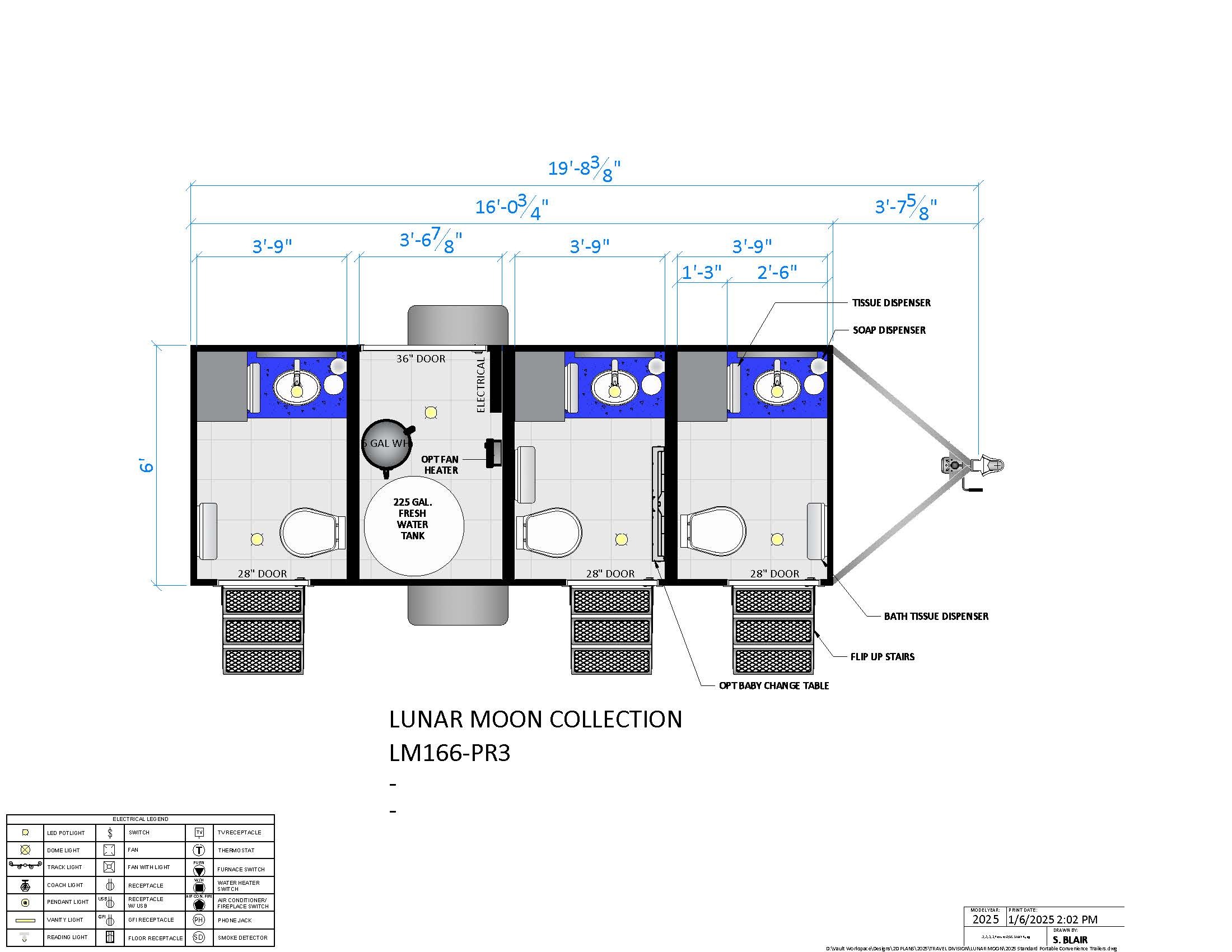

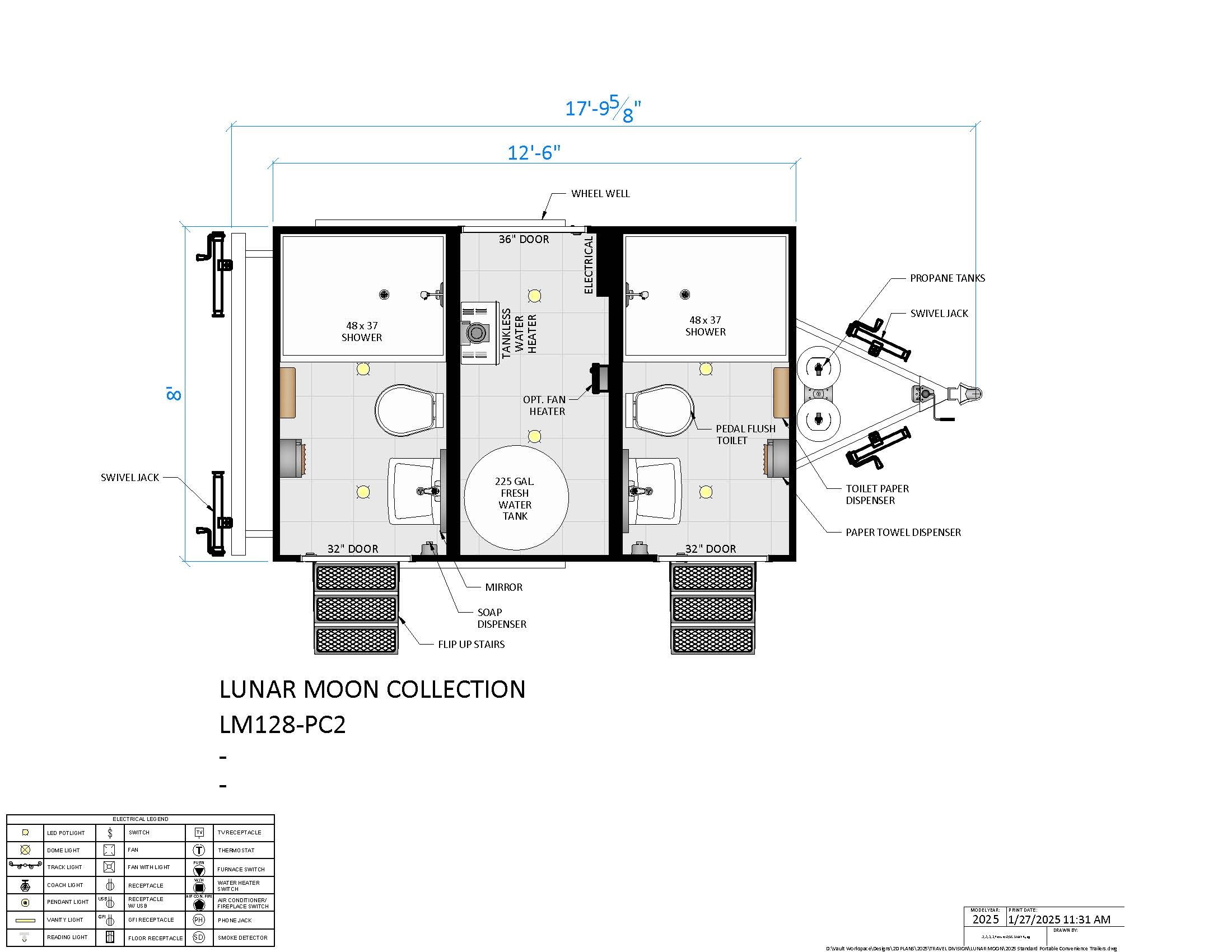

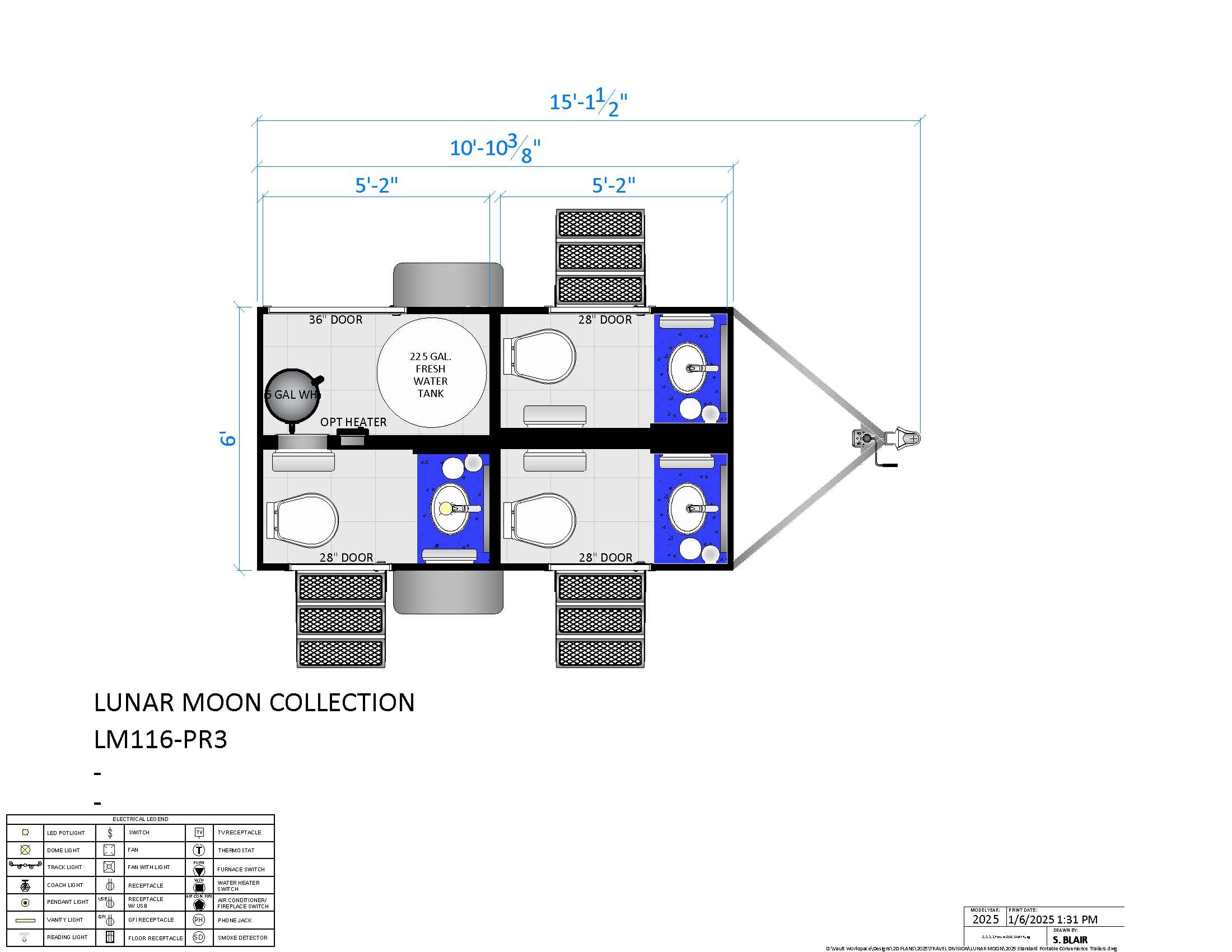

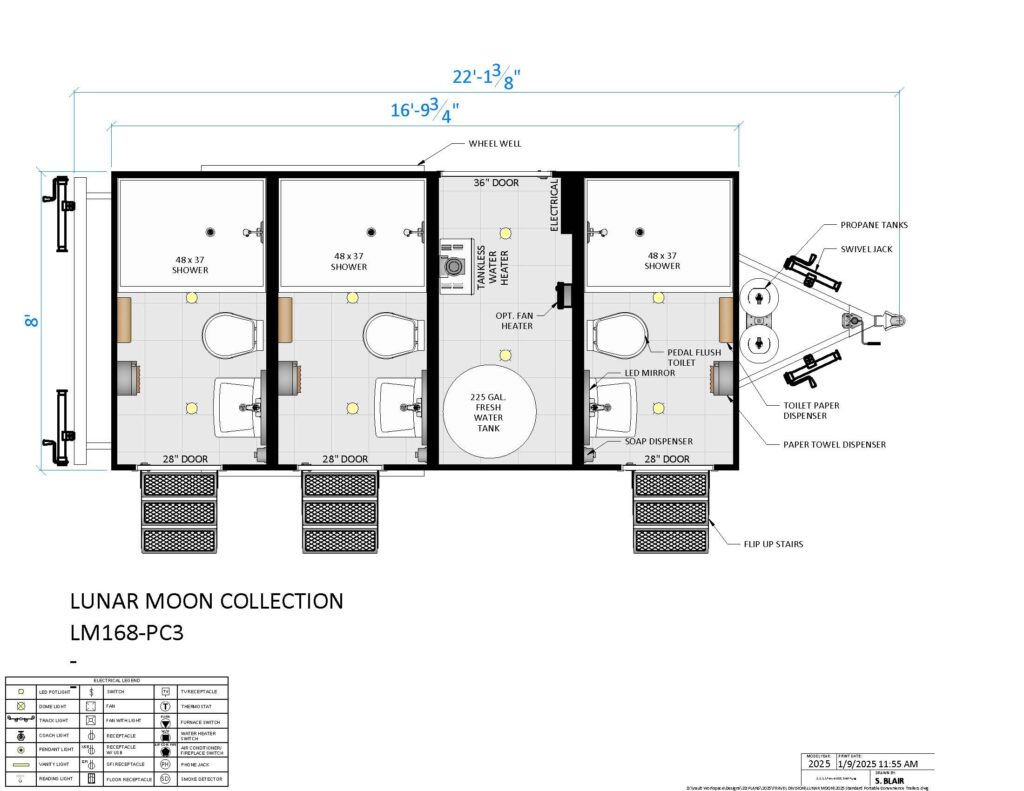

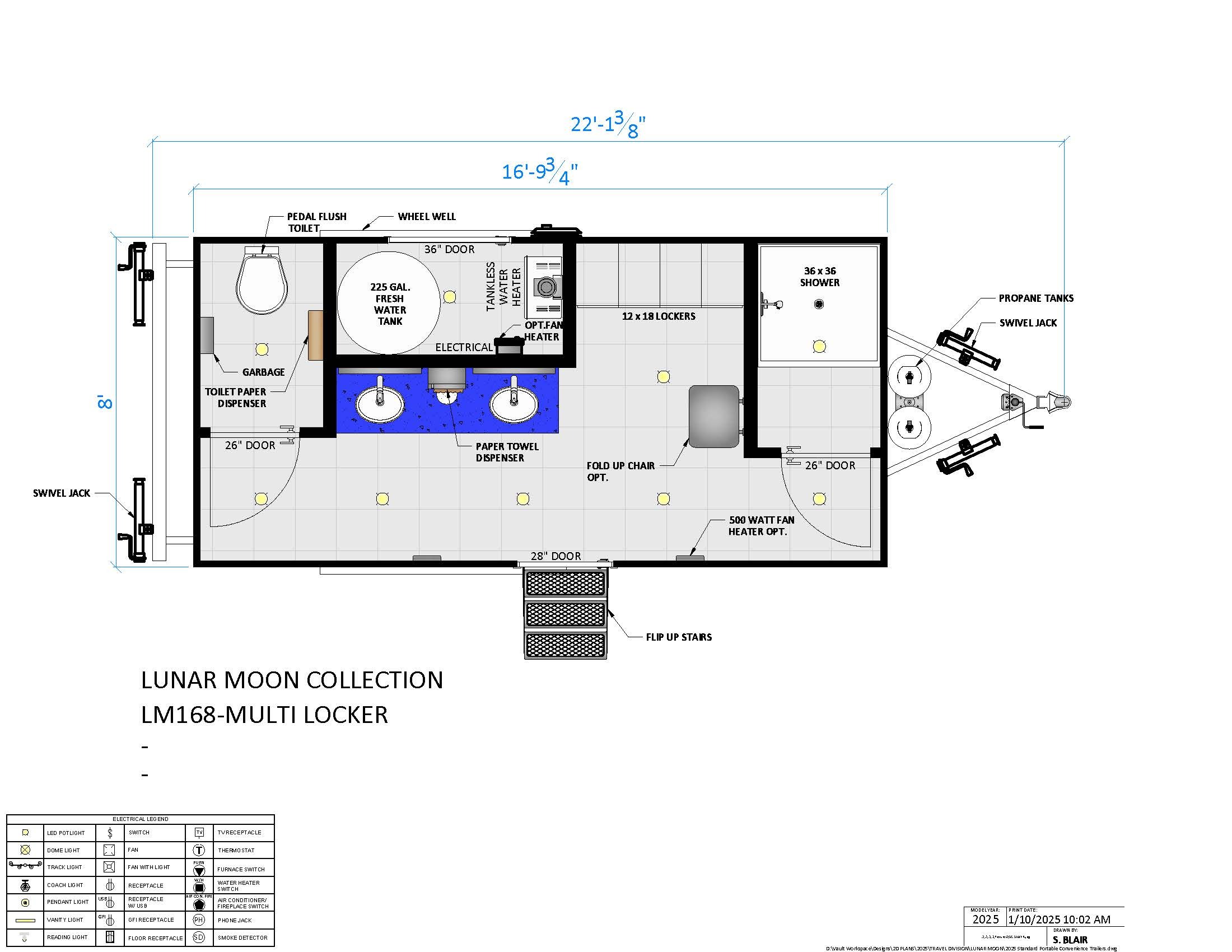

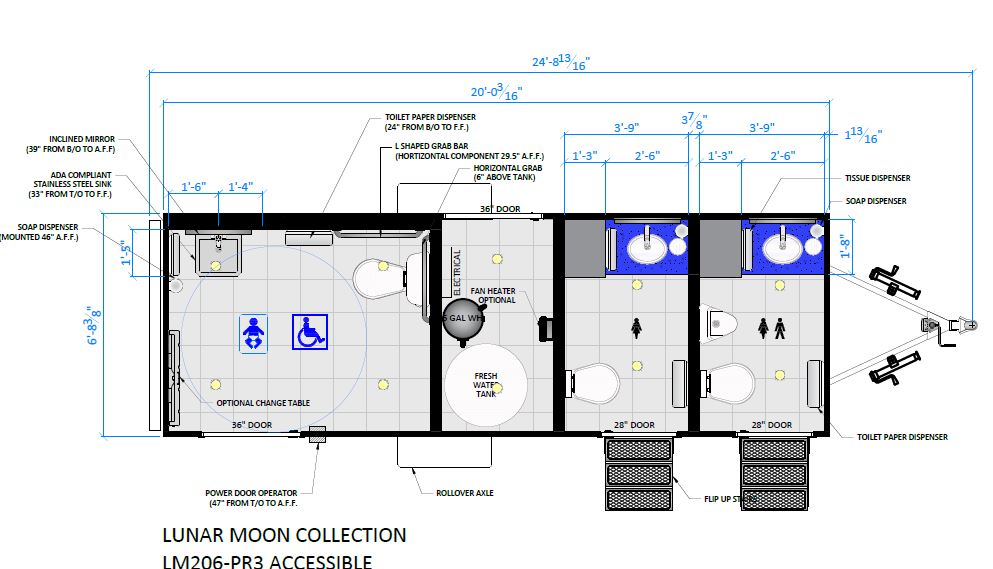

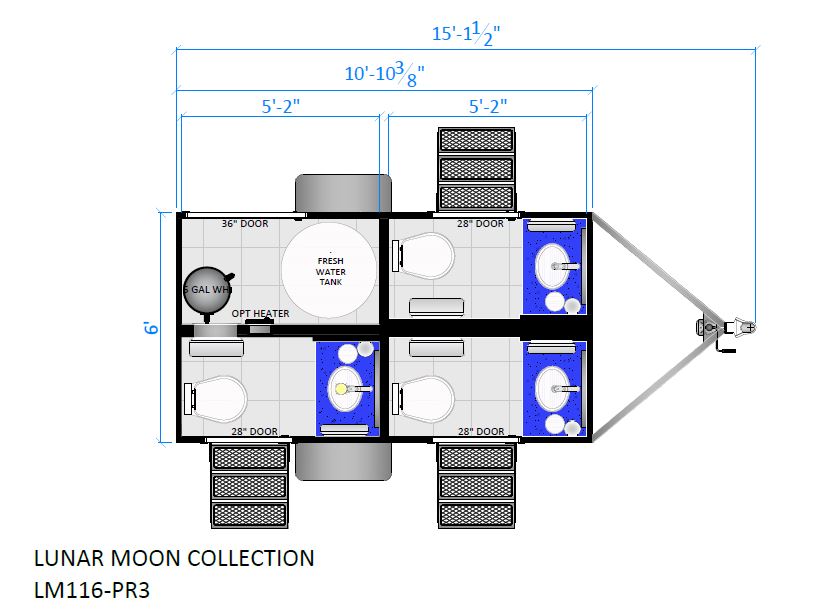

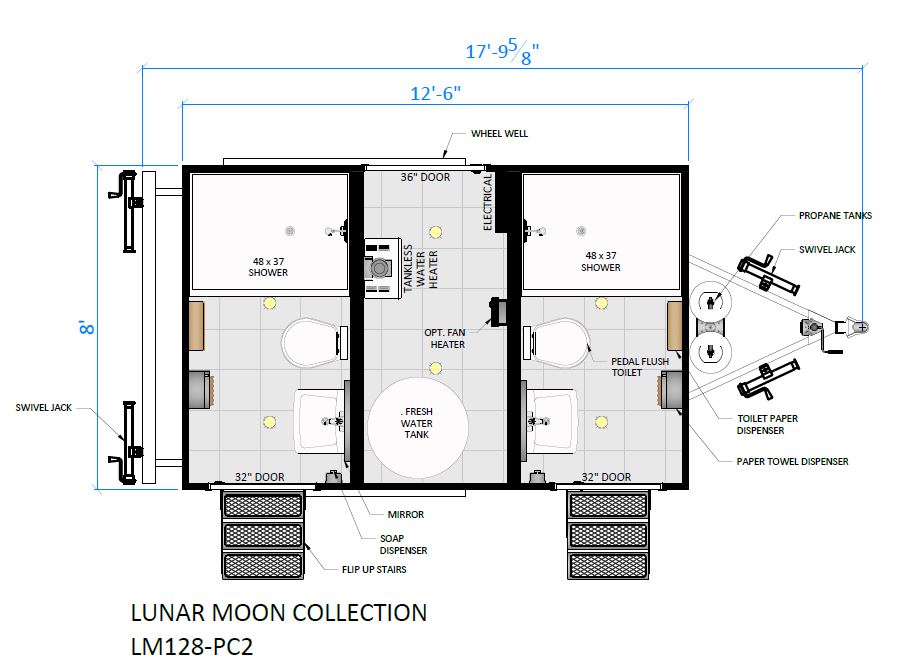

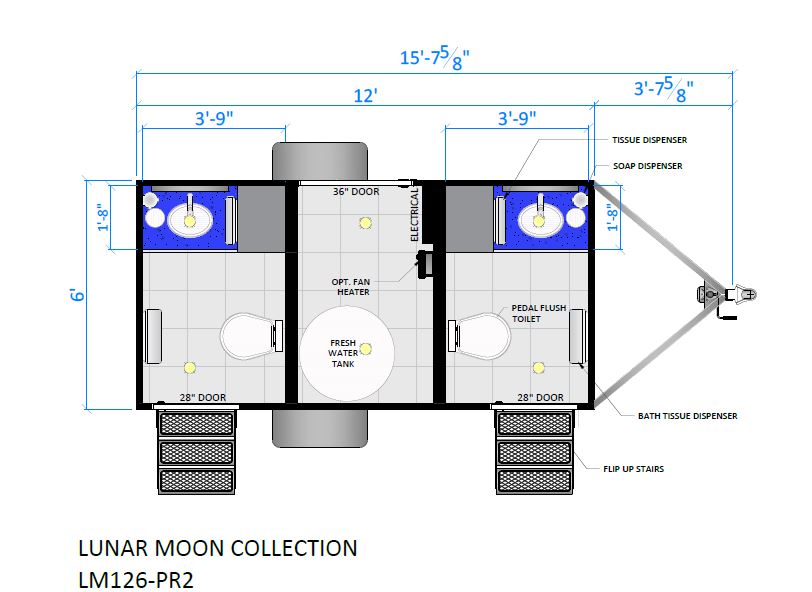

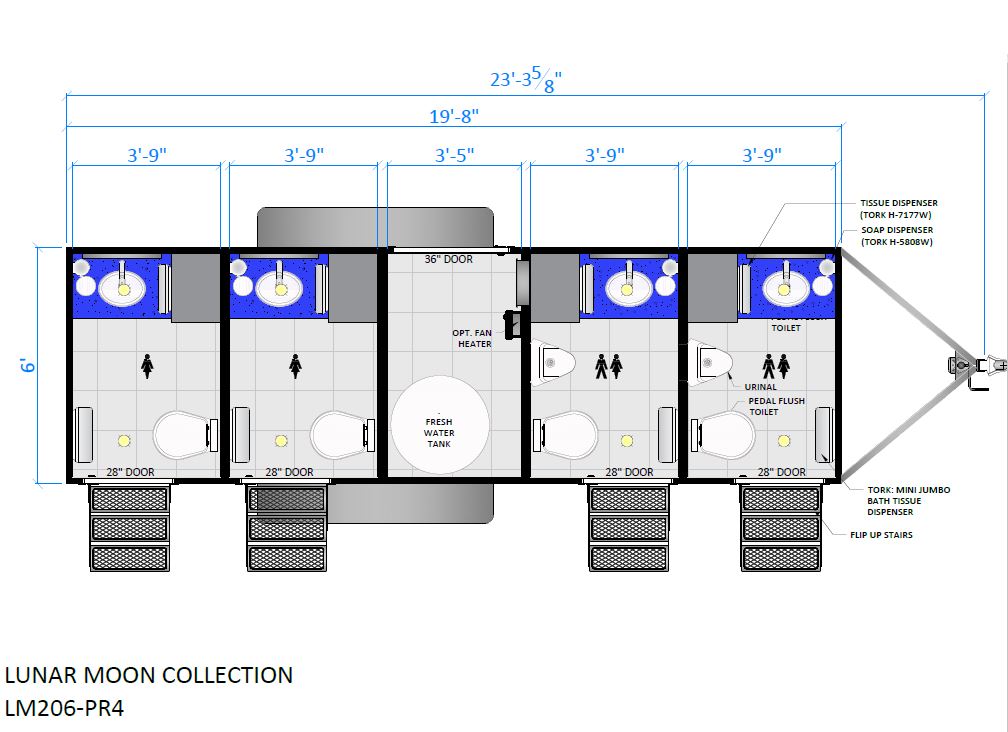

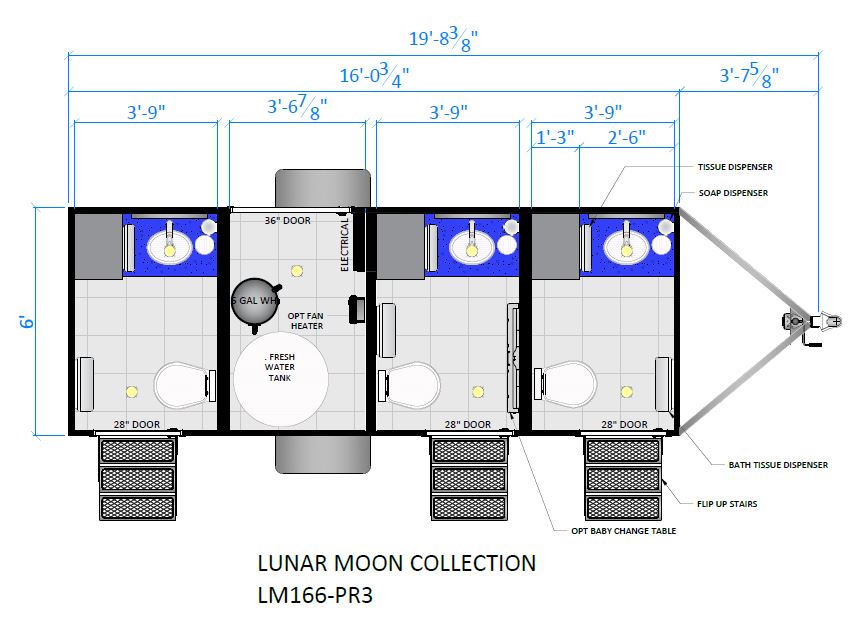

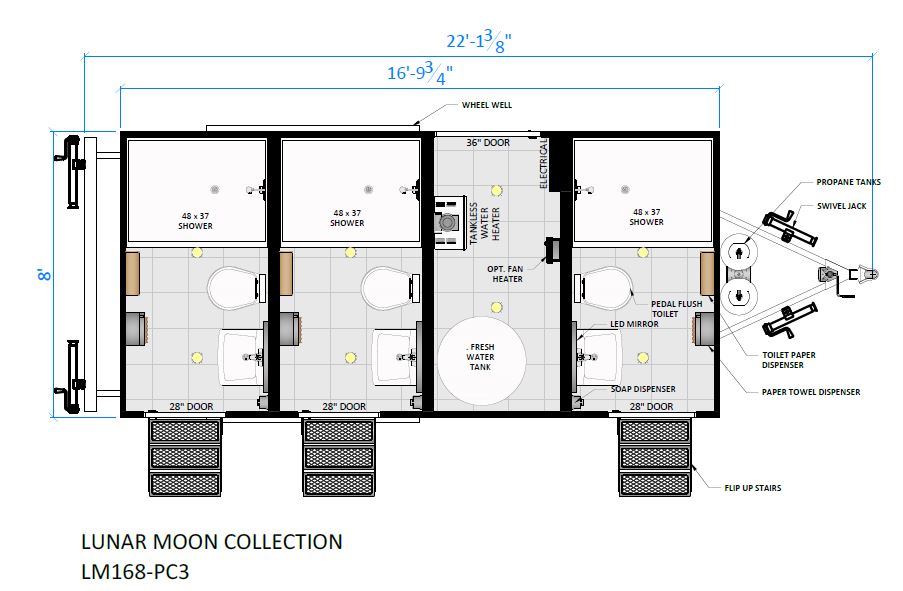

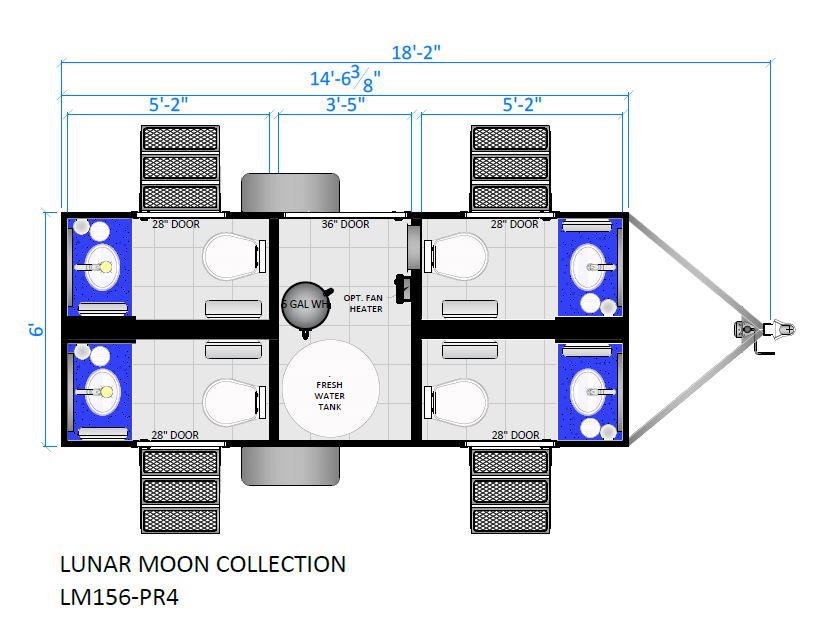

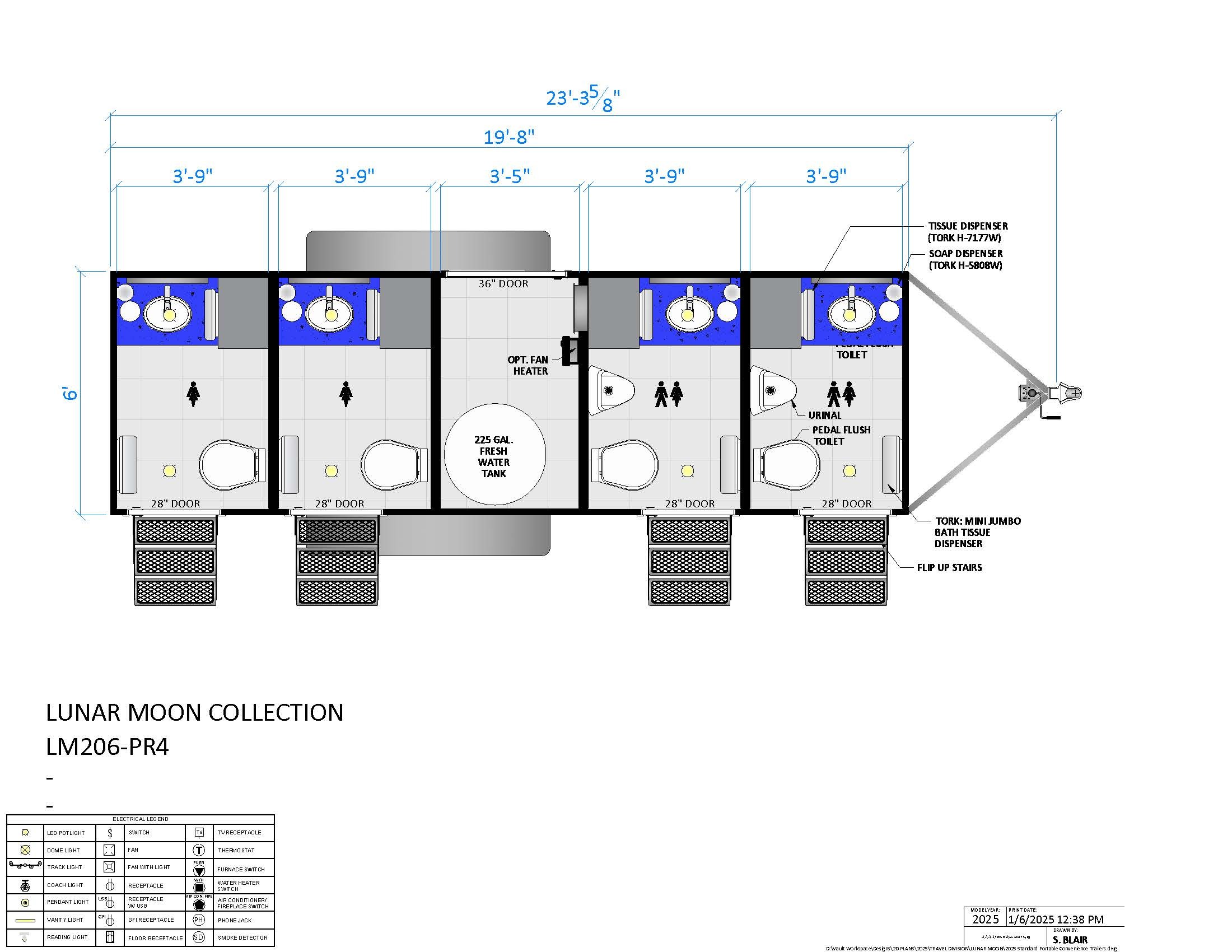

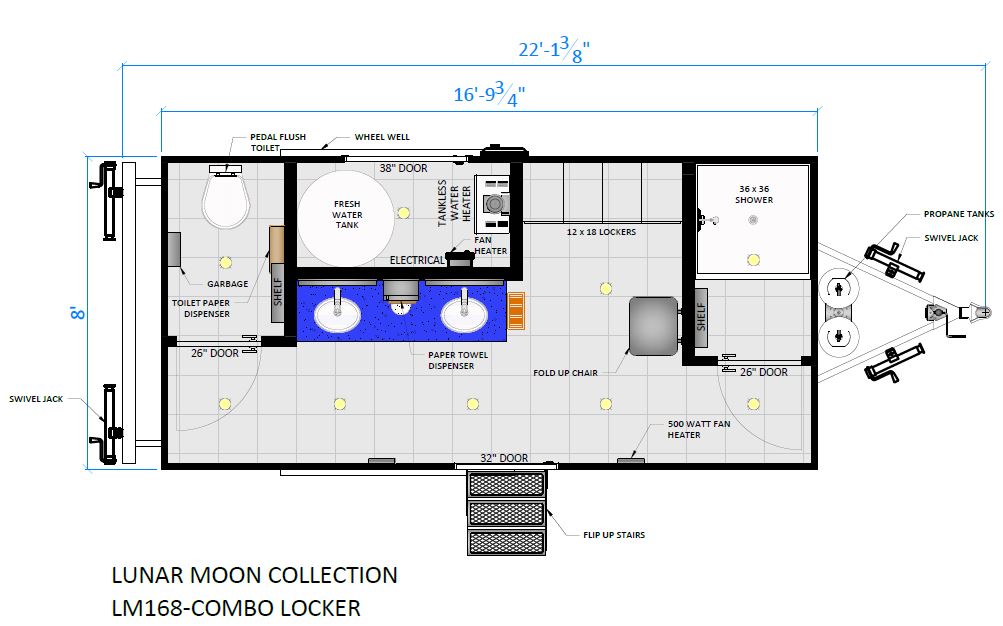

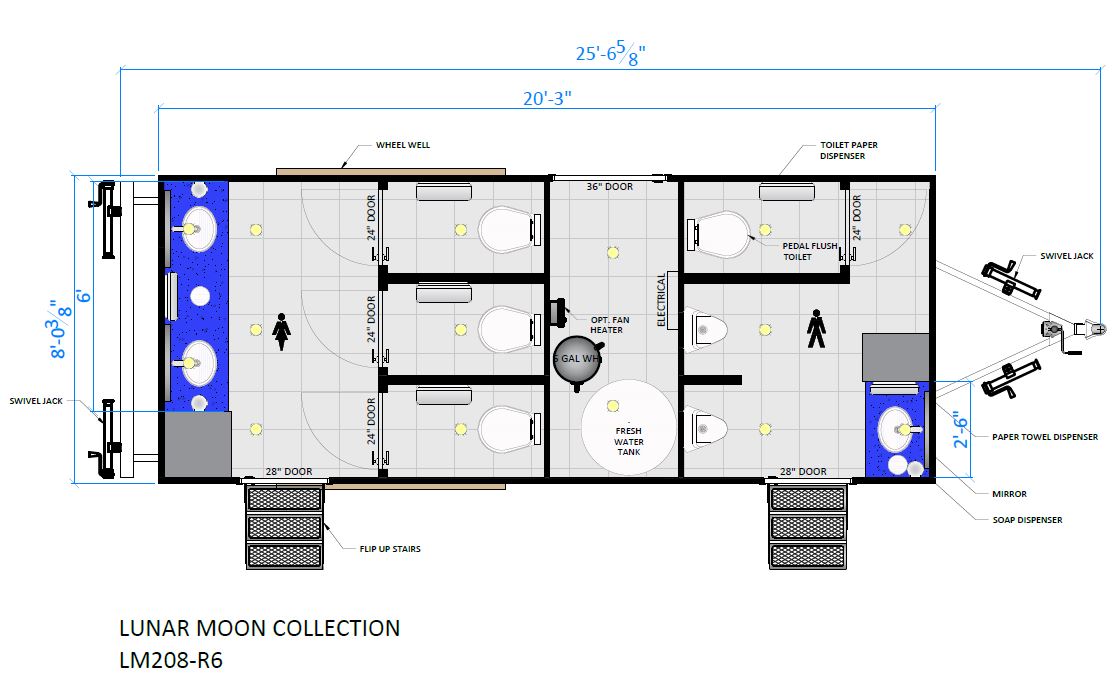

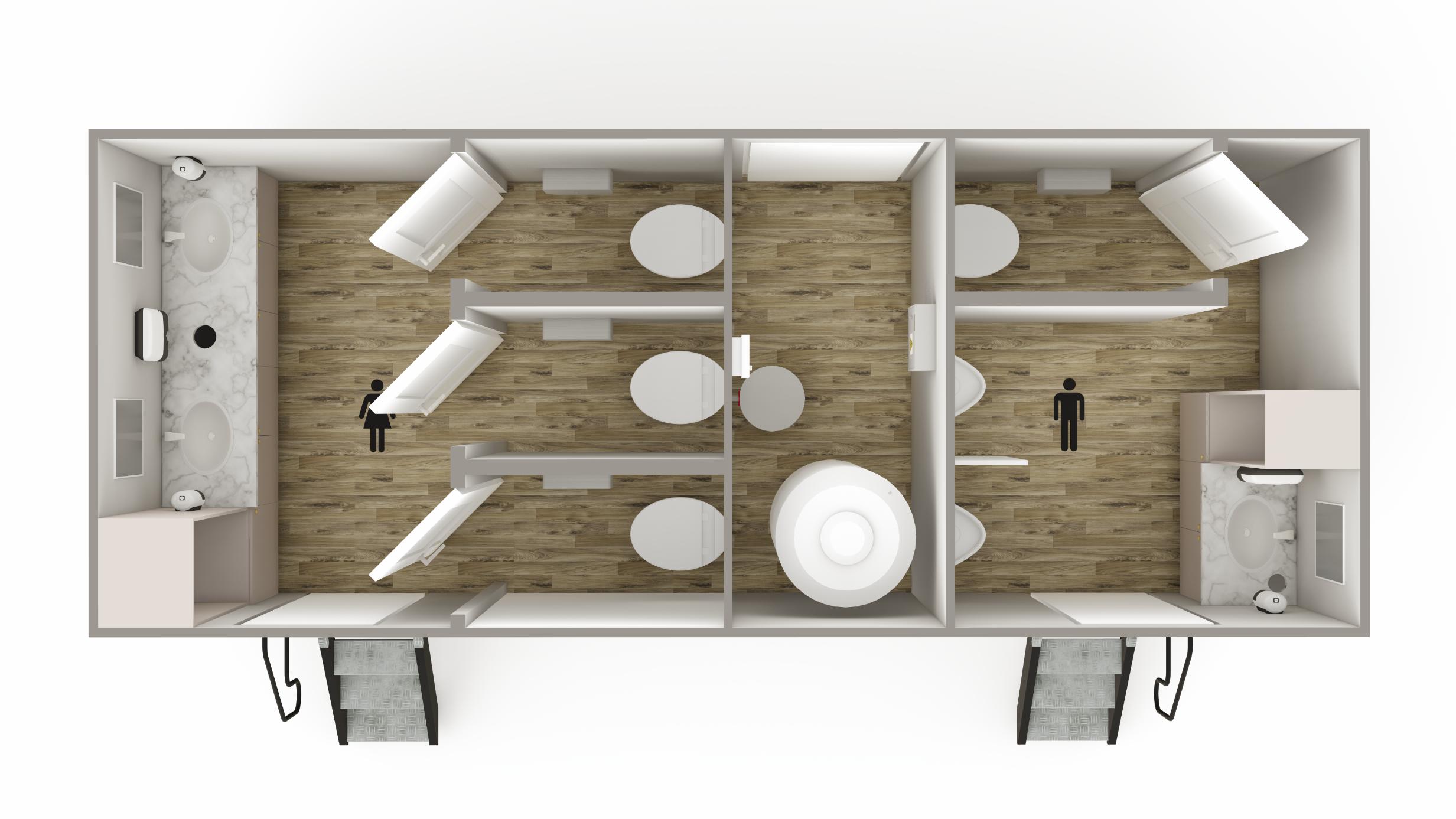

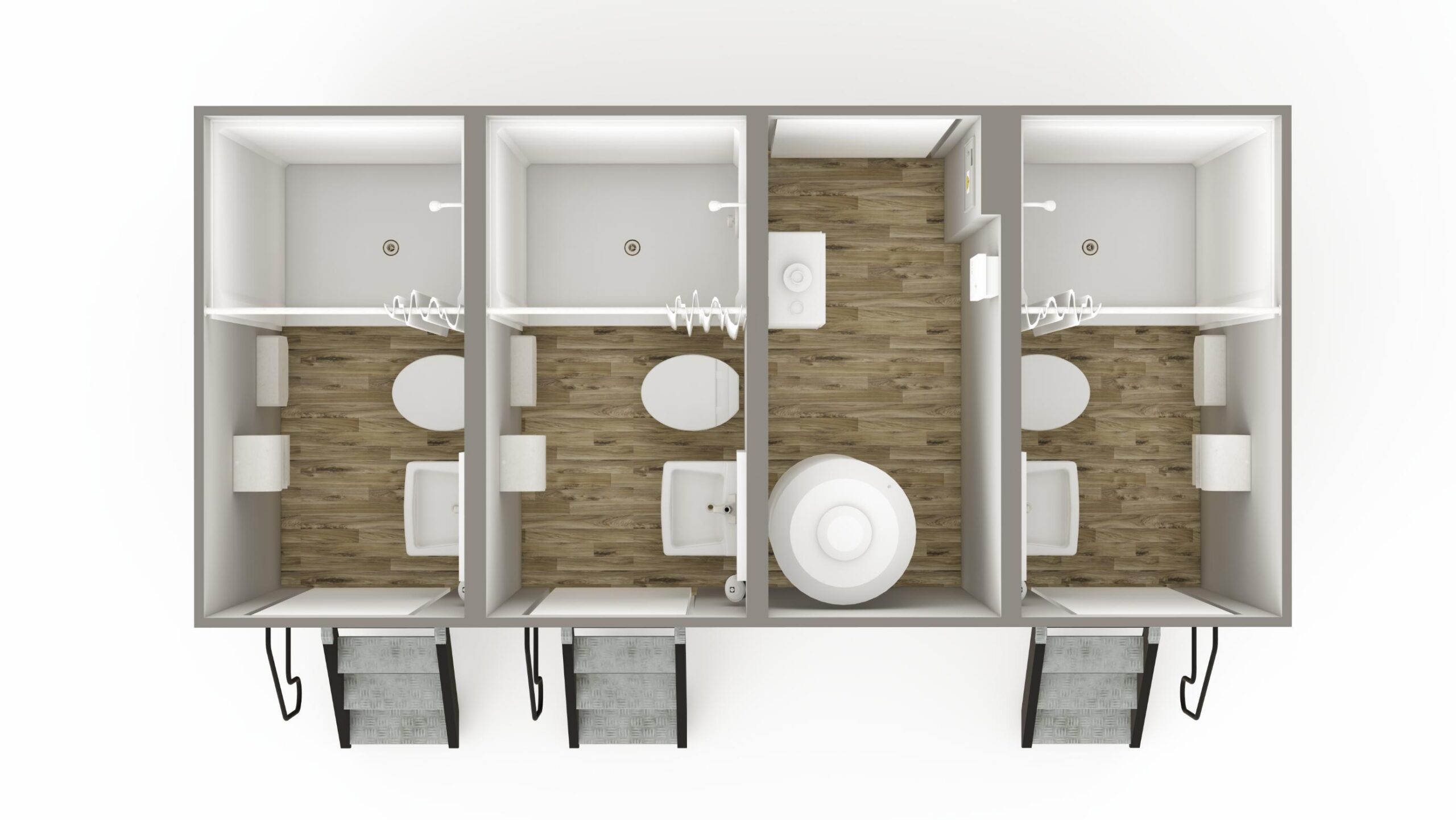

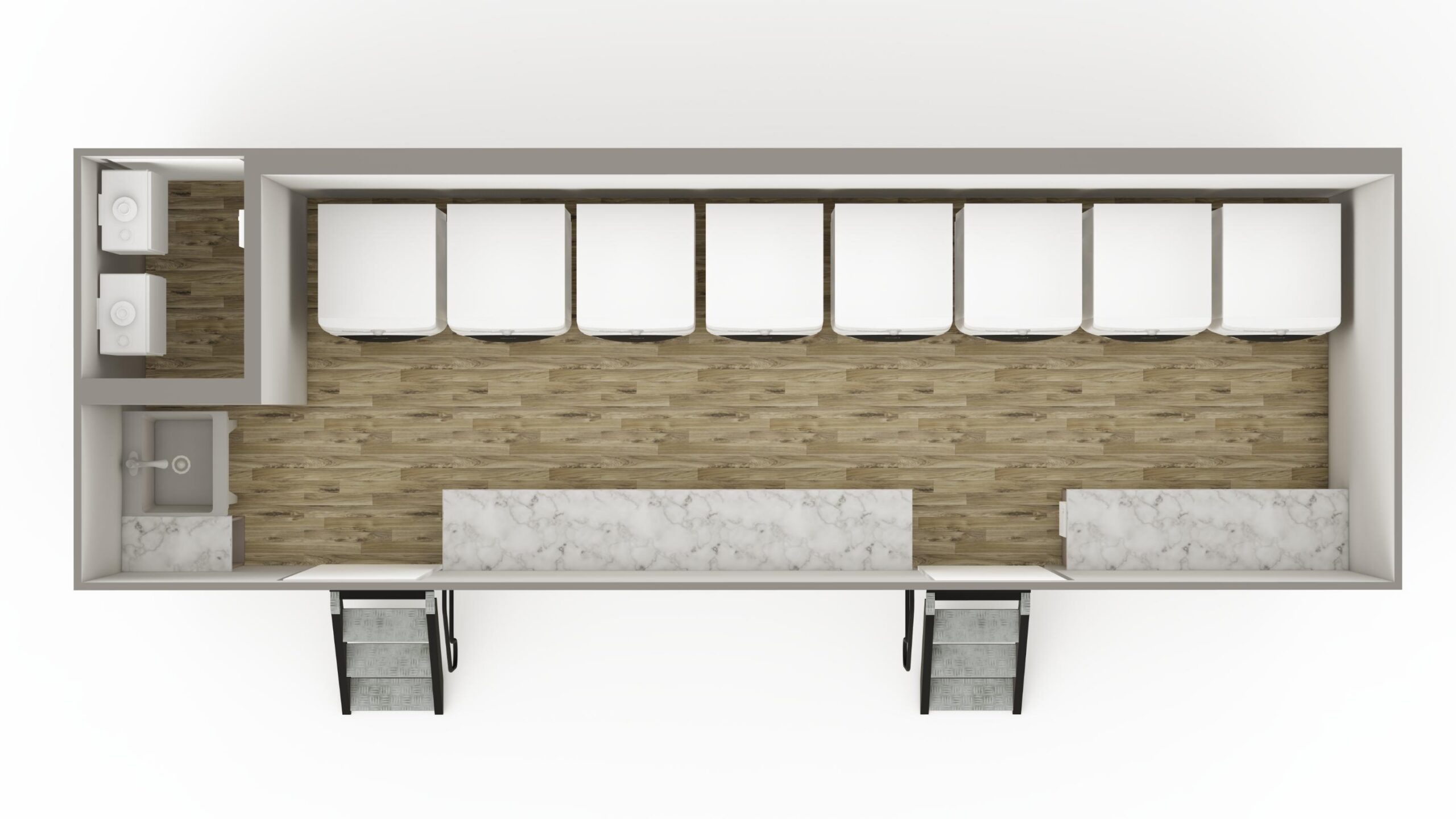

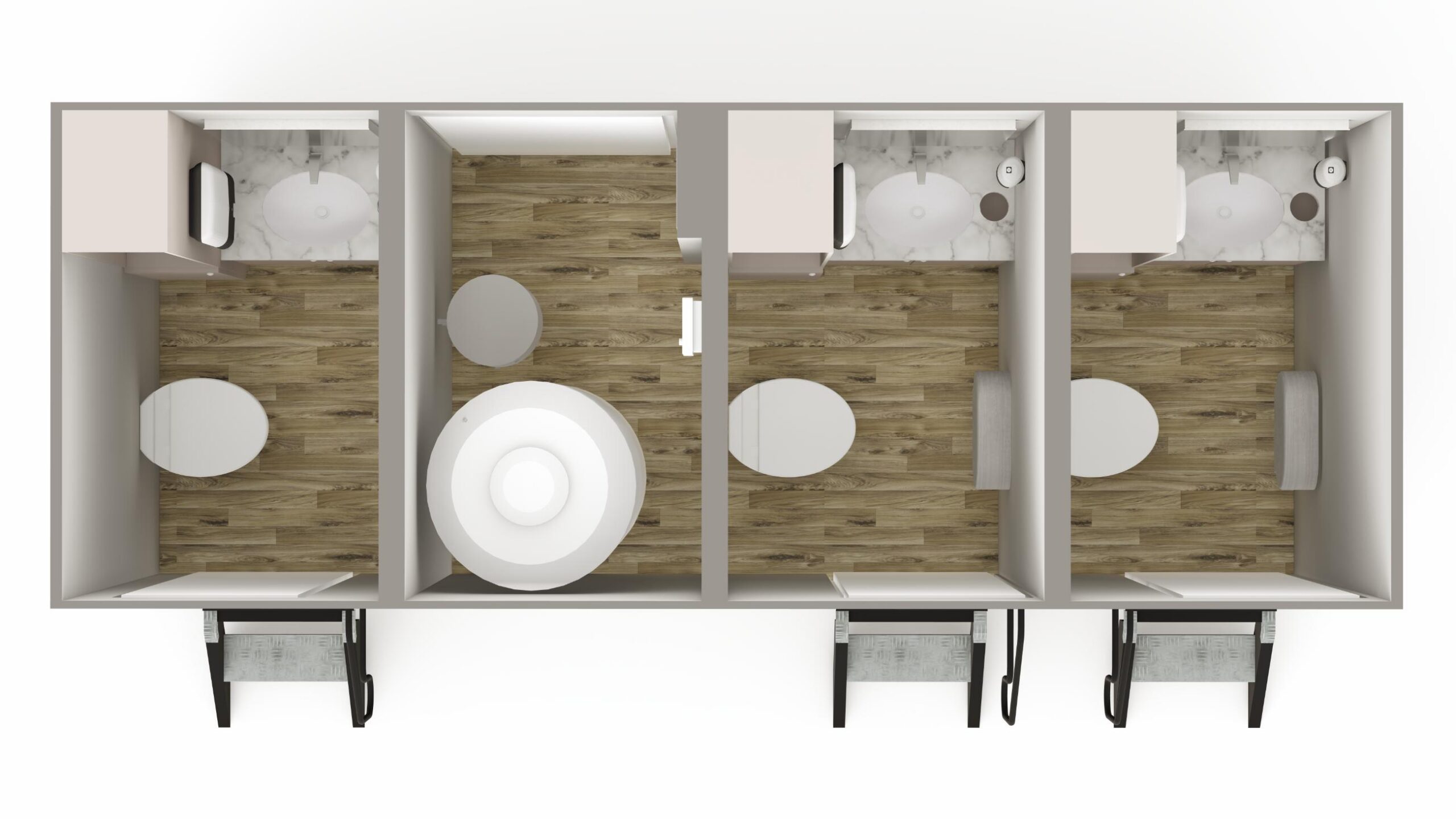

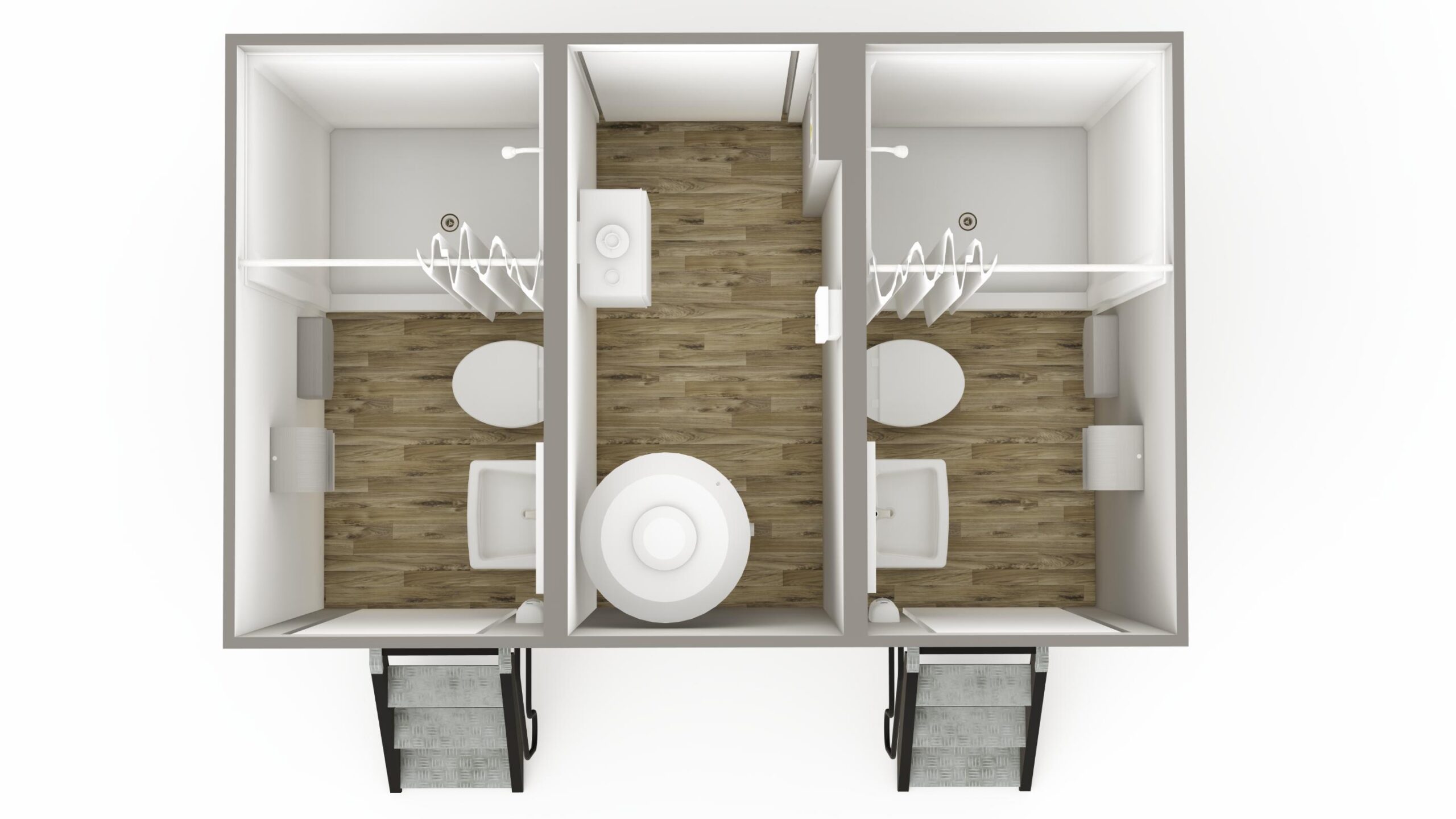

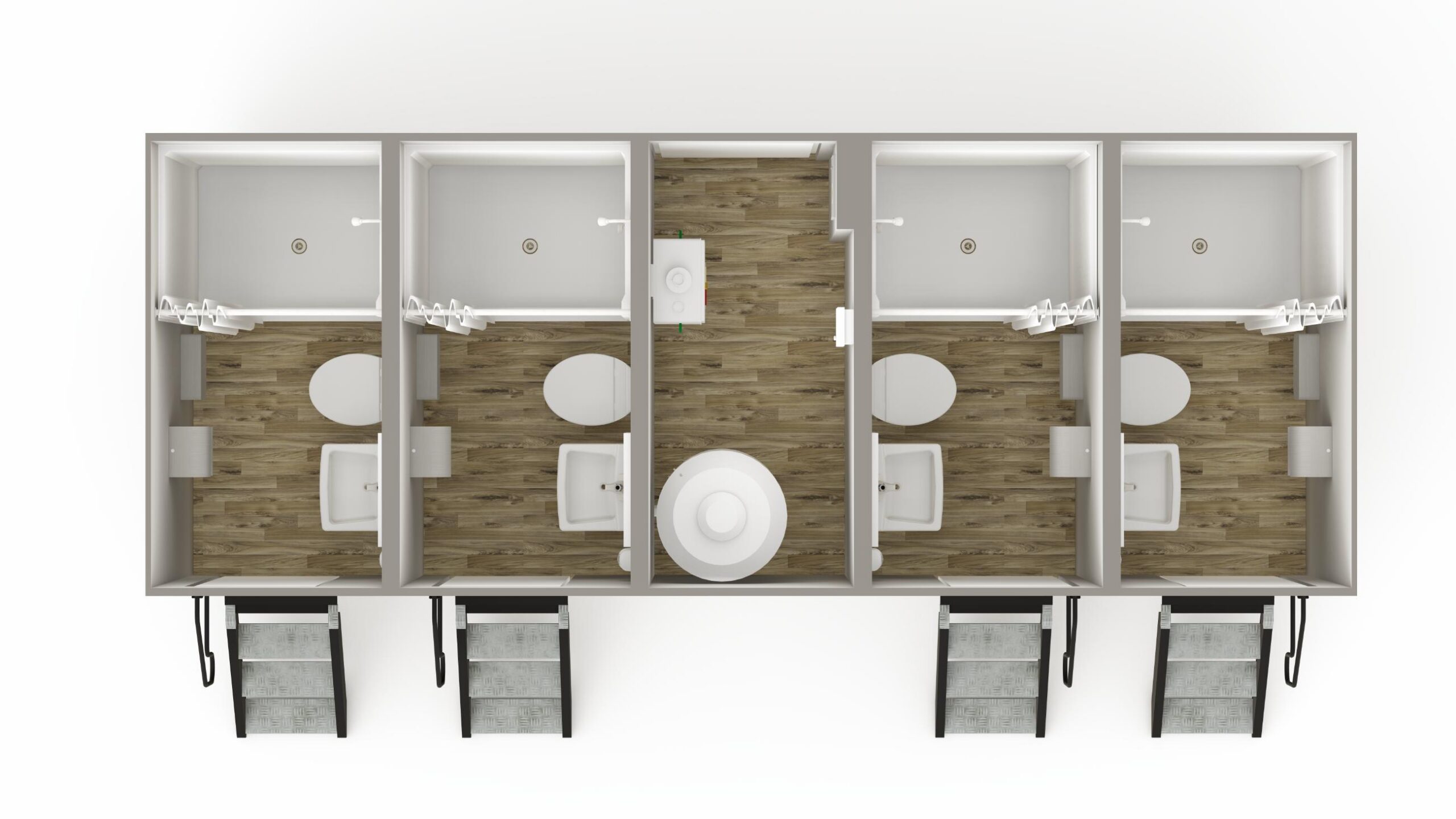

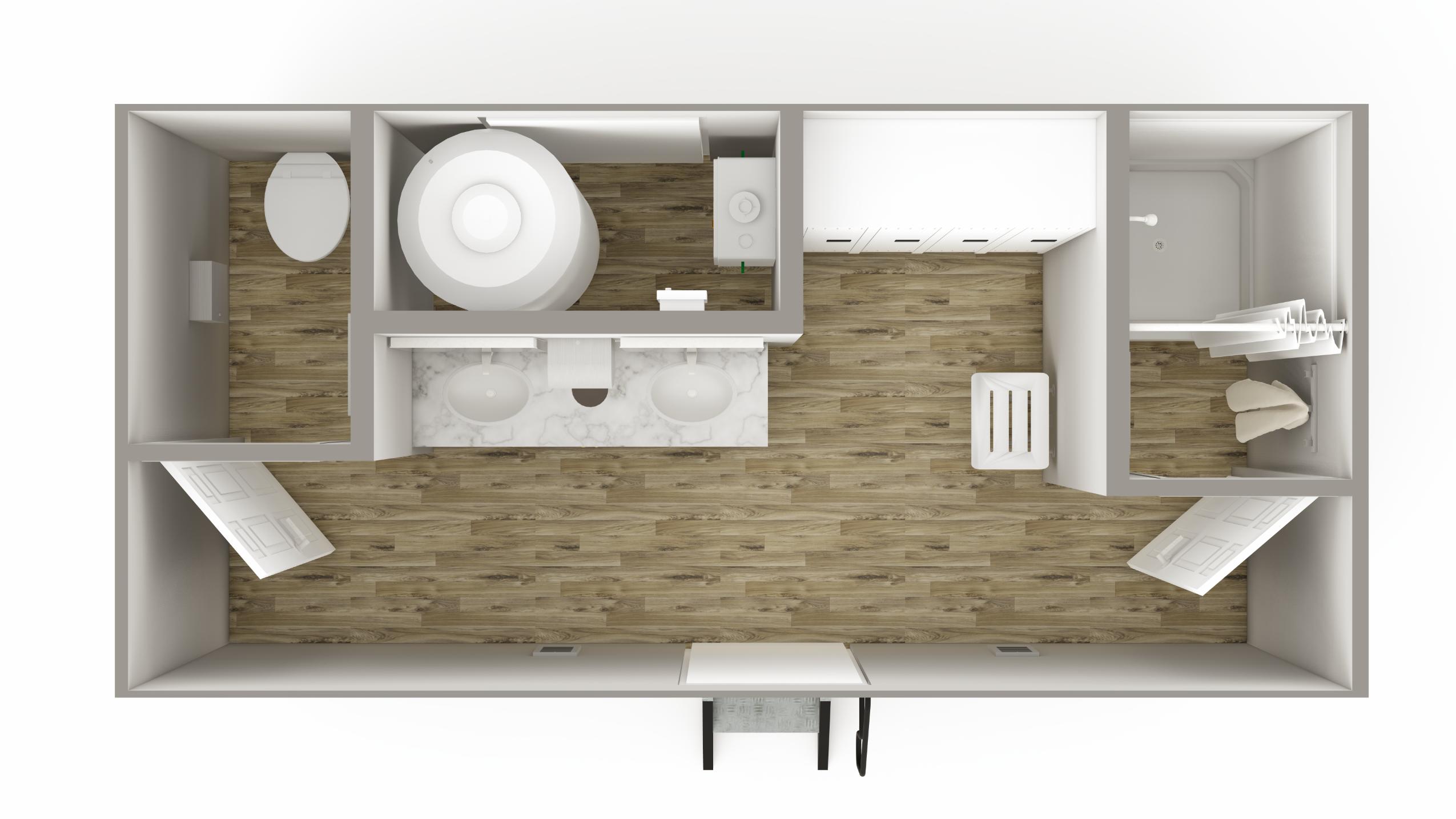

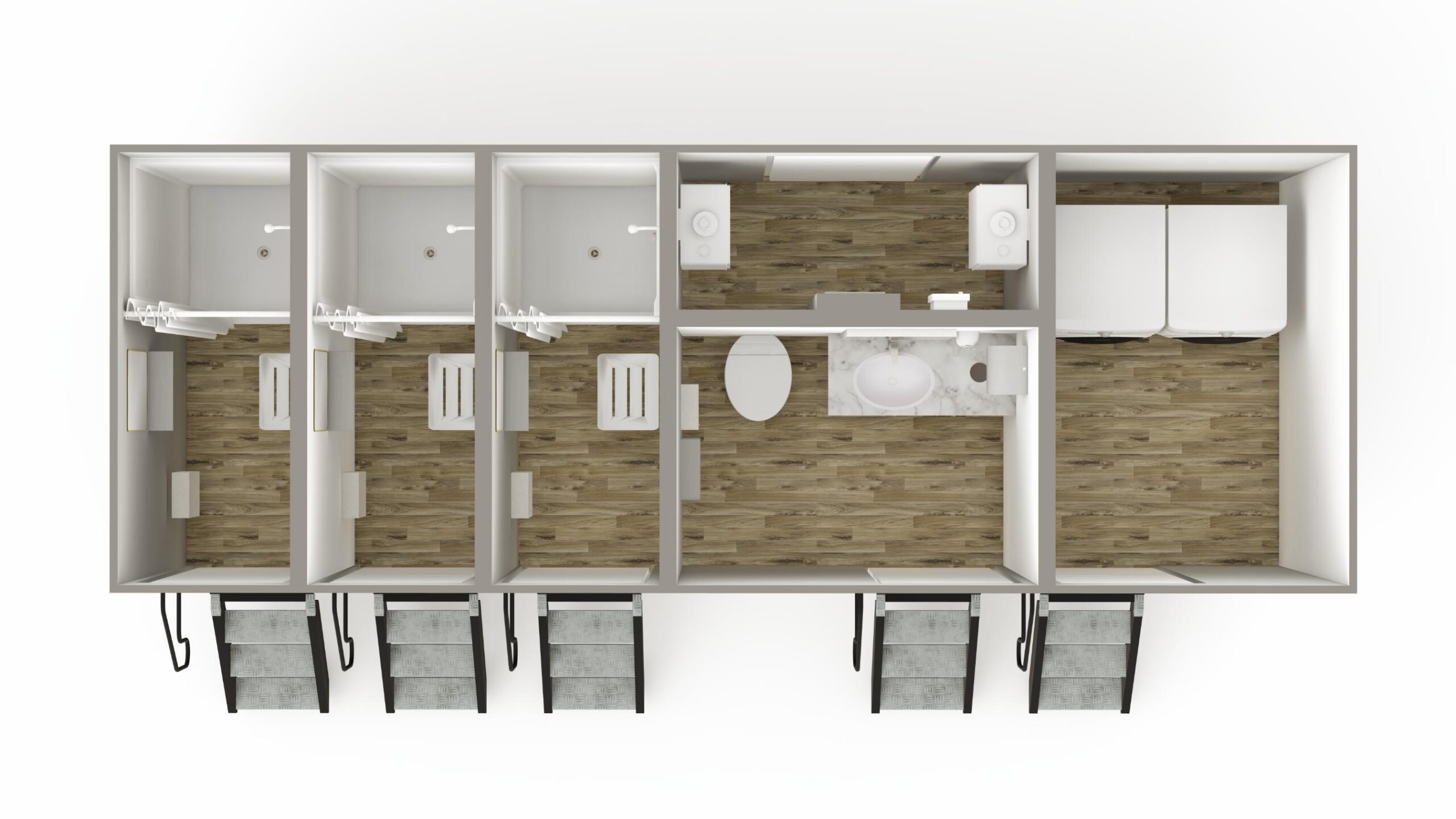

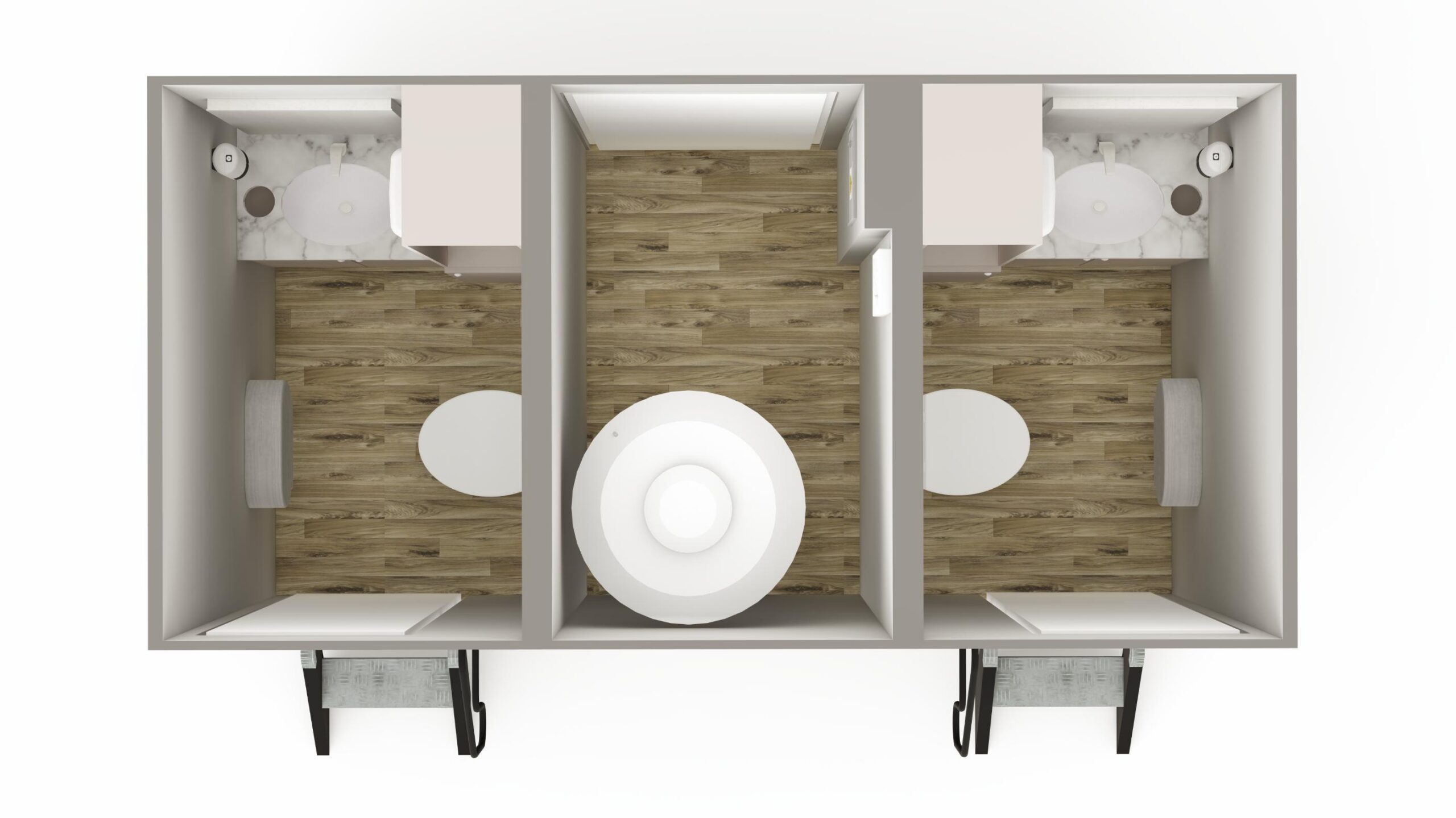

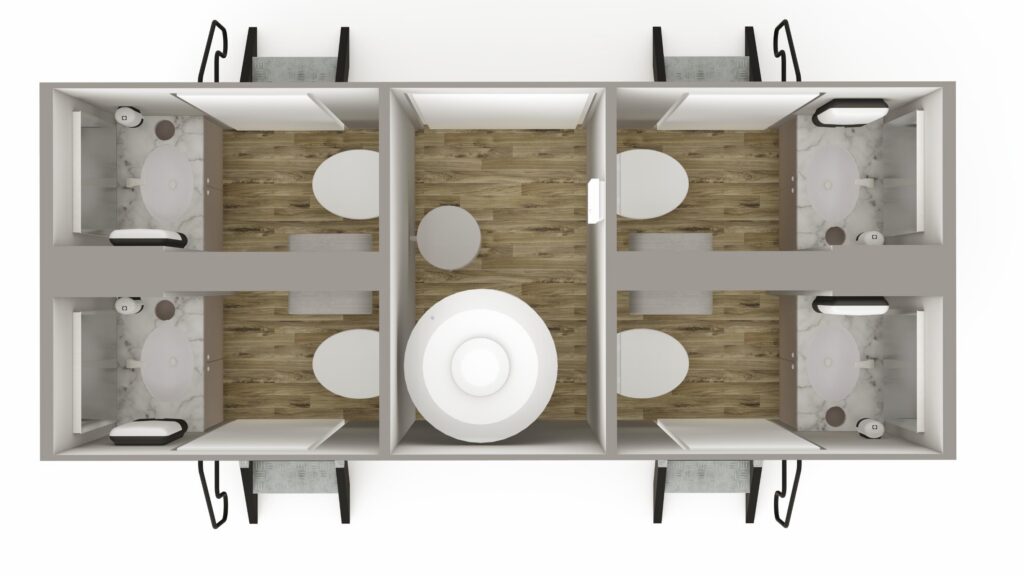

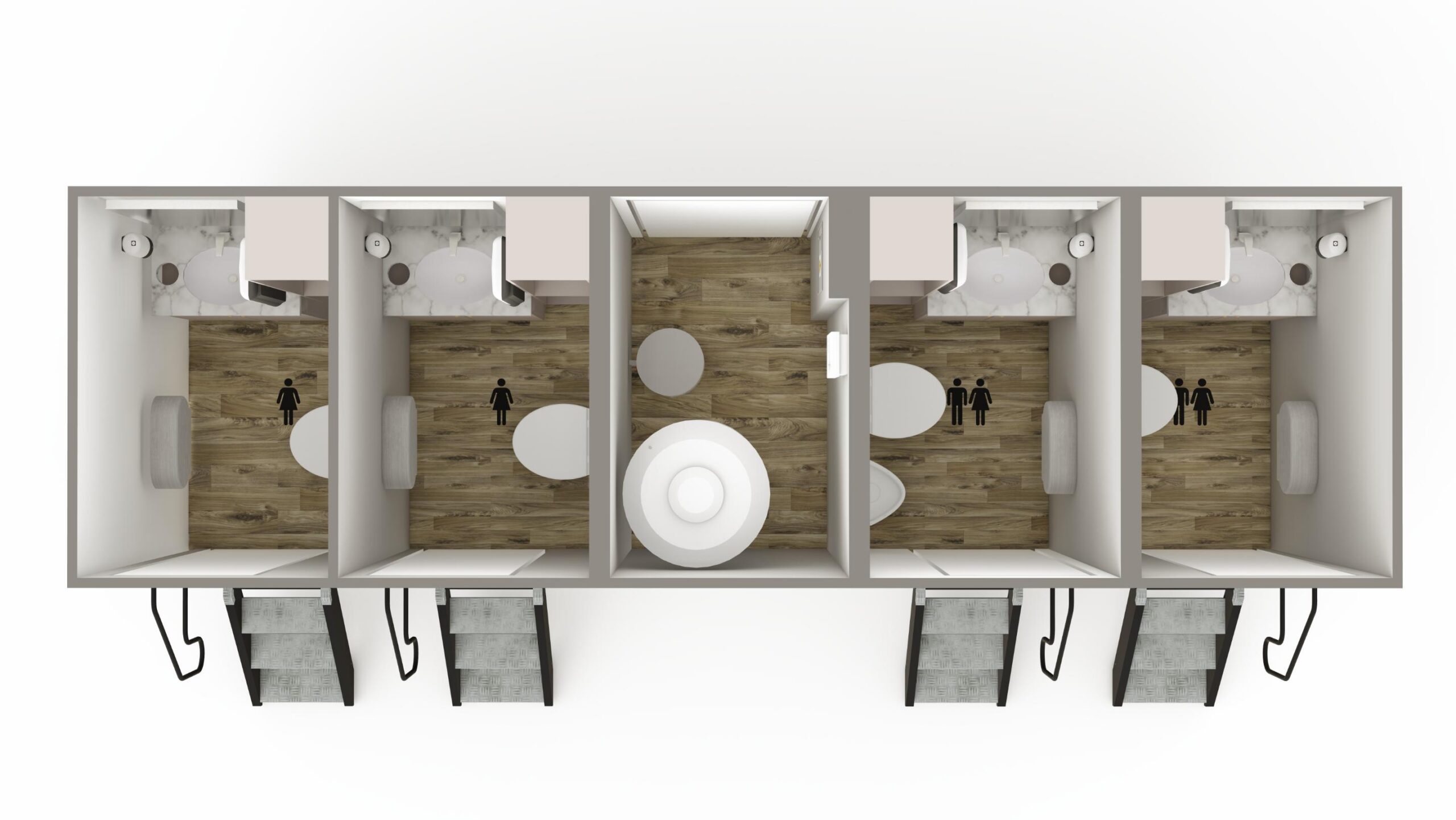

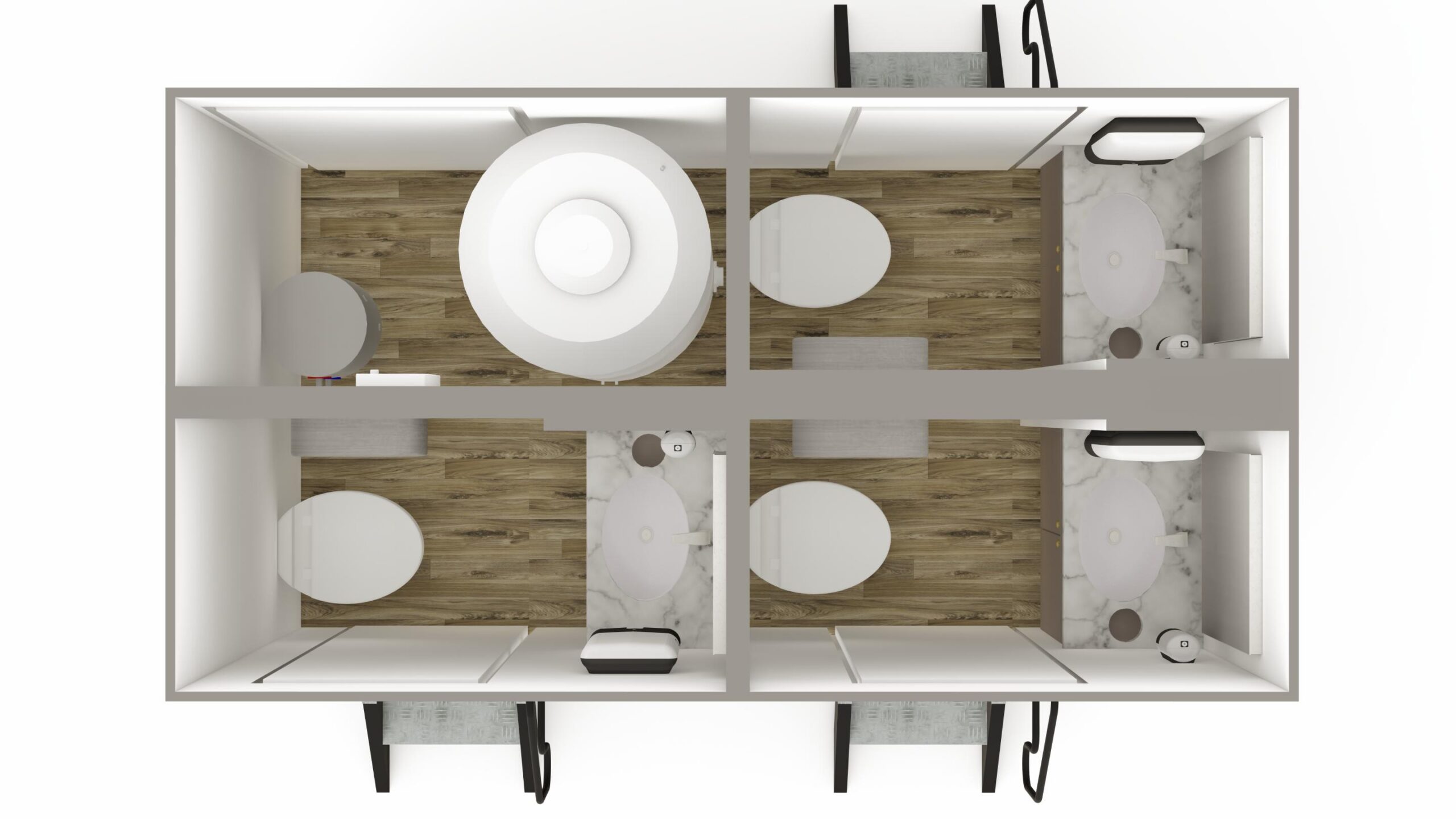

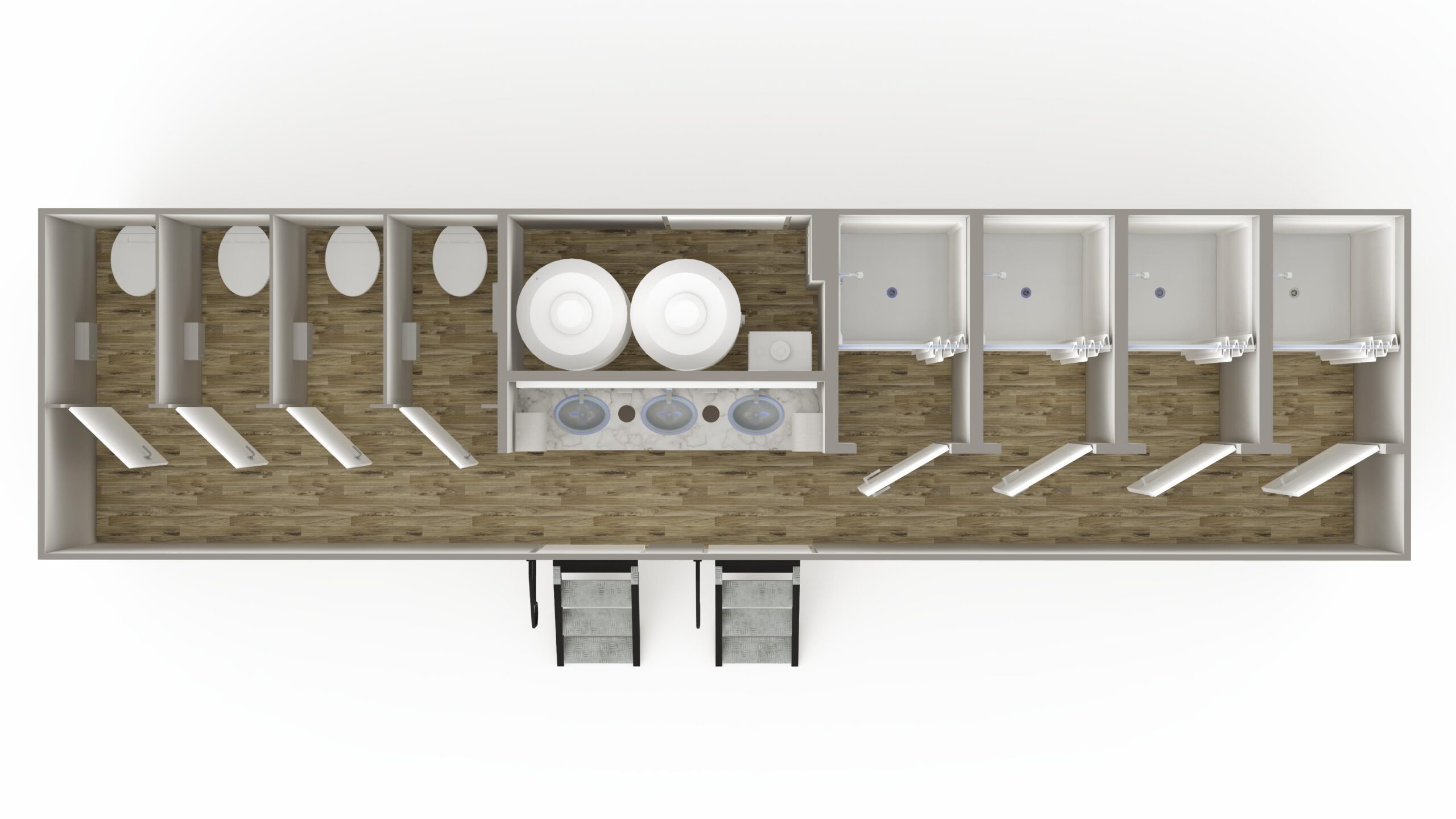

Browse Floor Plans

Washrooms are available as private or shared rooms, with toilets, showers, or a combination of both. Providing facilities to movie sets, sporting events, and wedding venues; but also to disaster relief programs, and large development/ renovation projects.

Quote this Floor Plan

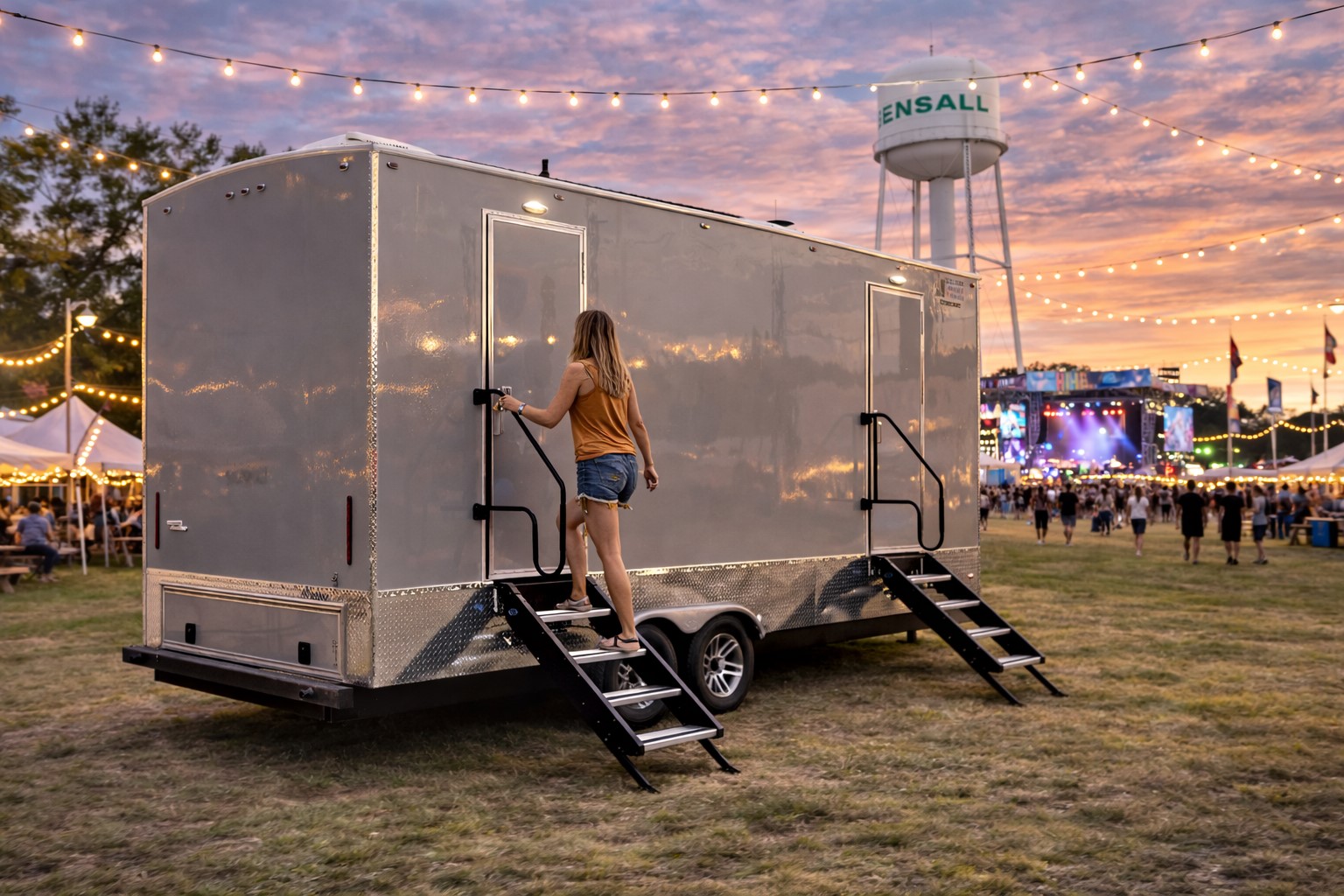

Mobile Self-Contained Units Up to 38'

  • Restroom Operators
  • Emergency Response
  • Firefighting
  • Outreach Programs
  • Disaster Relief Efforts
  • ADA Units
  • Custom Builds Available

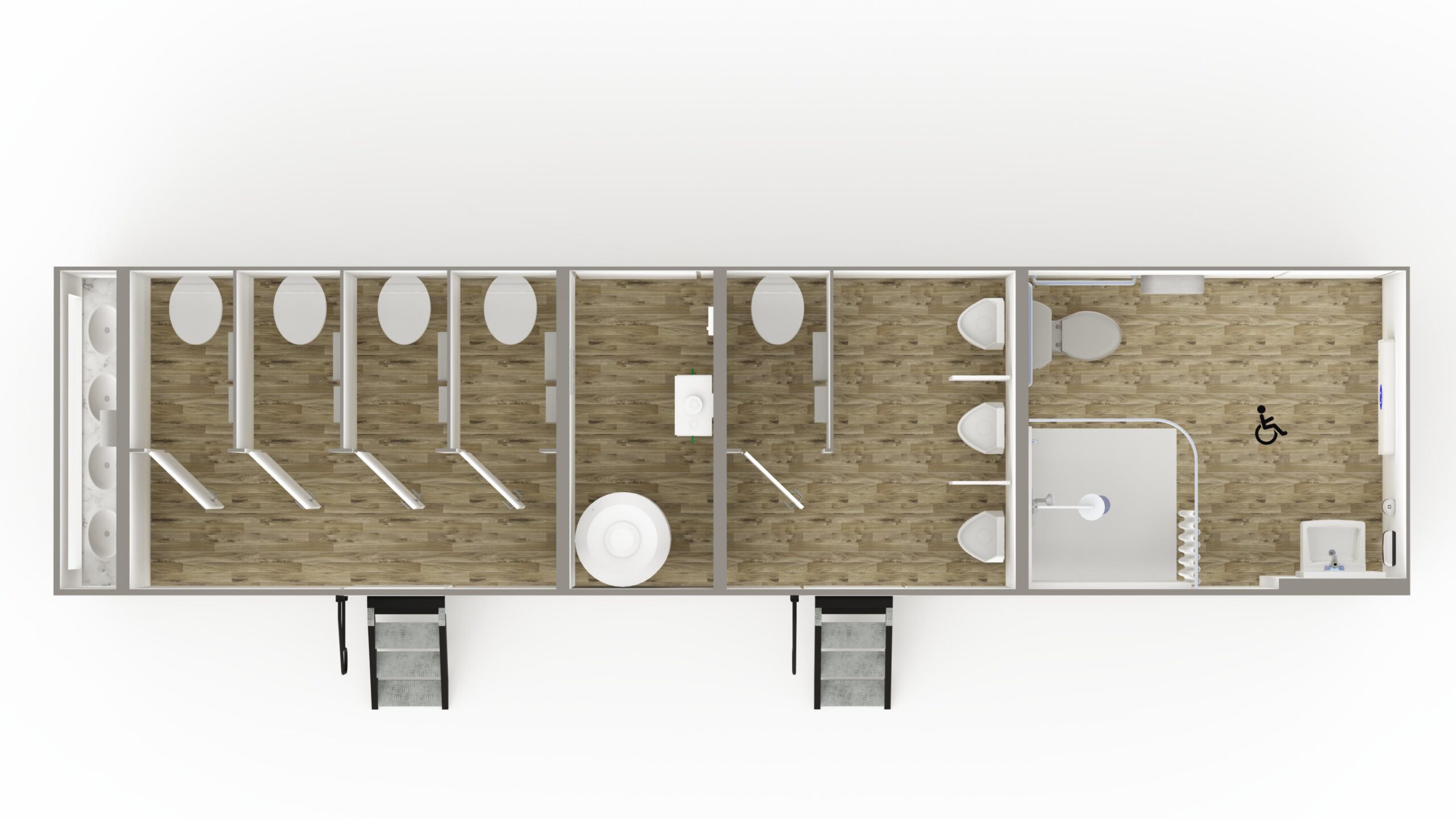

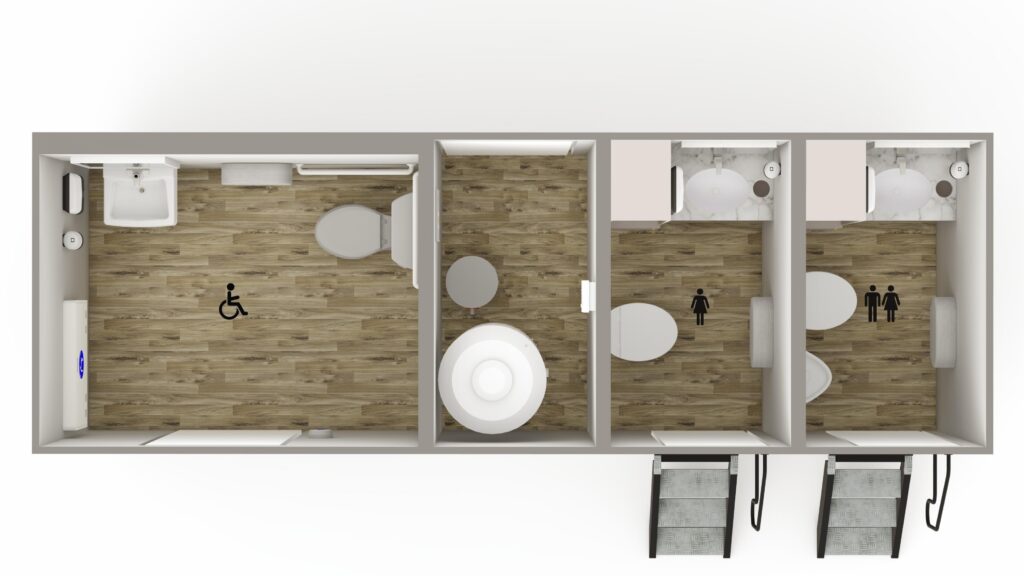

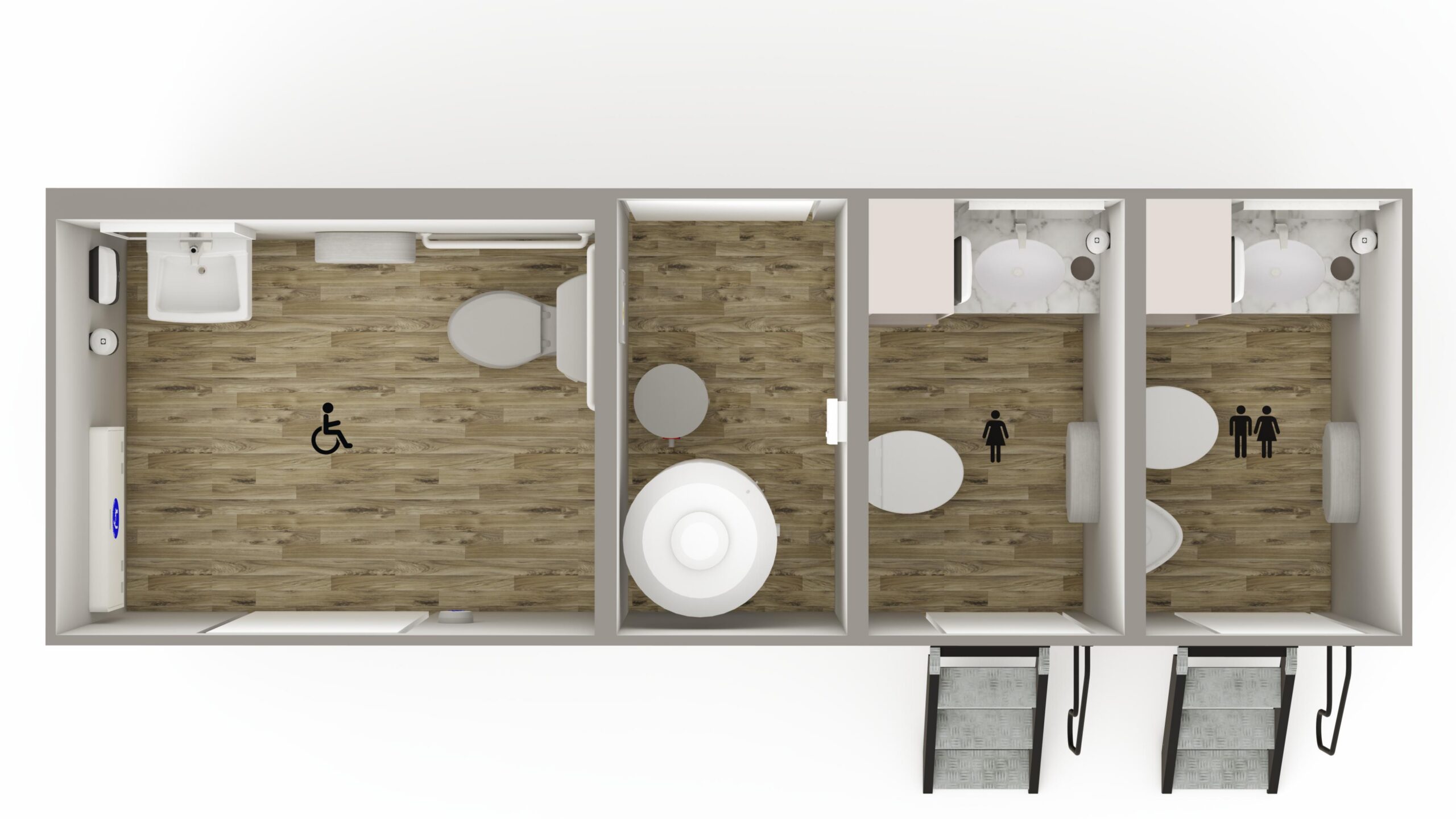

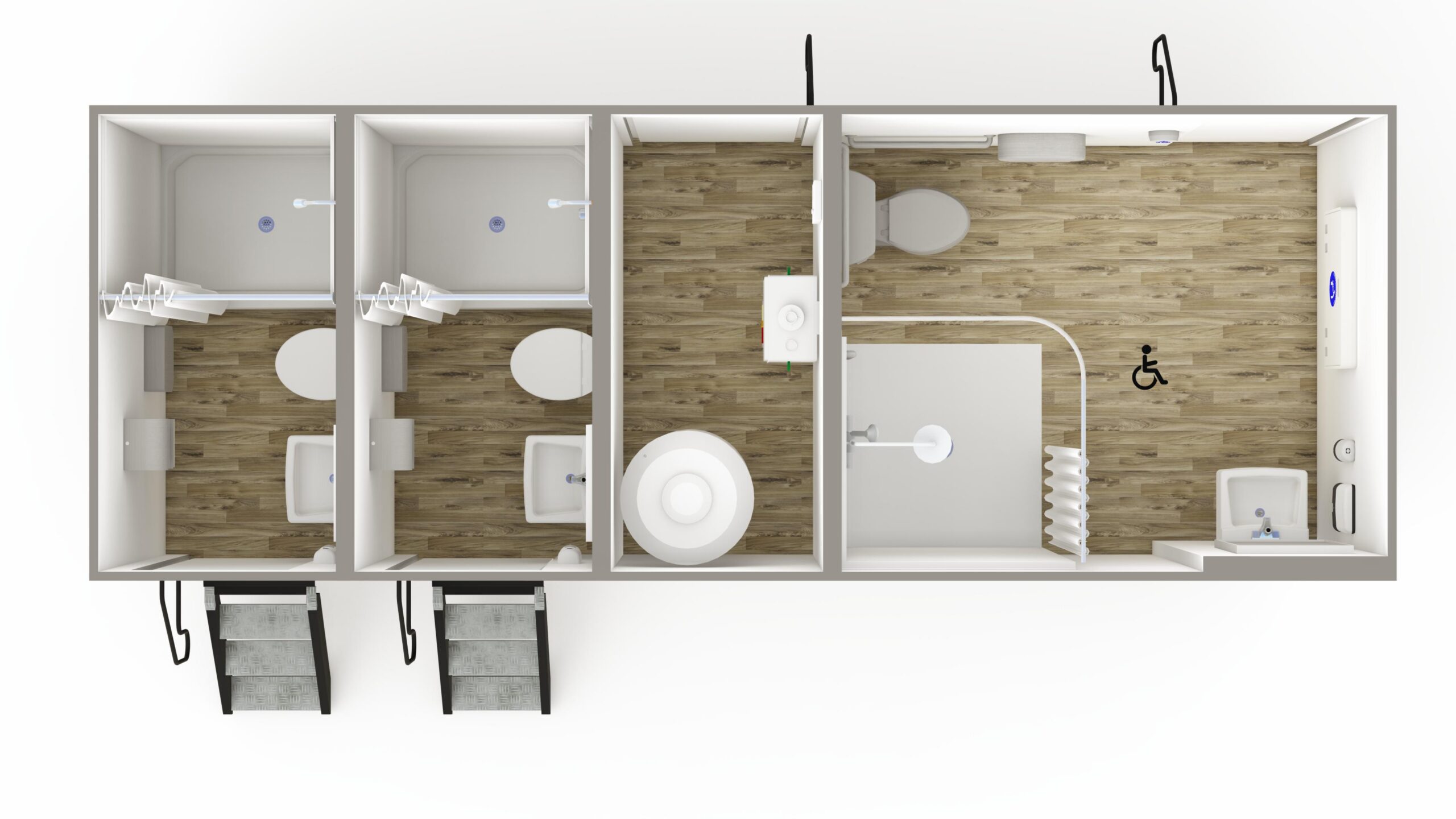

AODA / Wheelchair Accessible Washrooms and Showers

  • Municipalities
  • Schools
  • Hospitals
  • Event Centers
  • Wedding Venues
  • Custom Builds Available



Job Site and Seasonal Commercial 12' to 14' Wide

  • Washroom
  • Shower

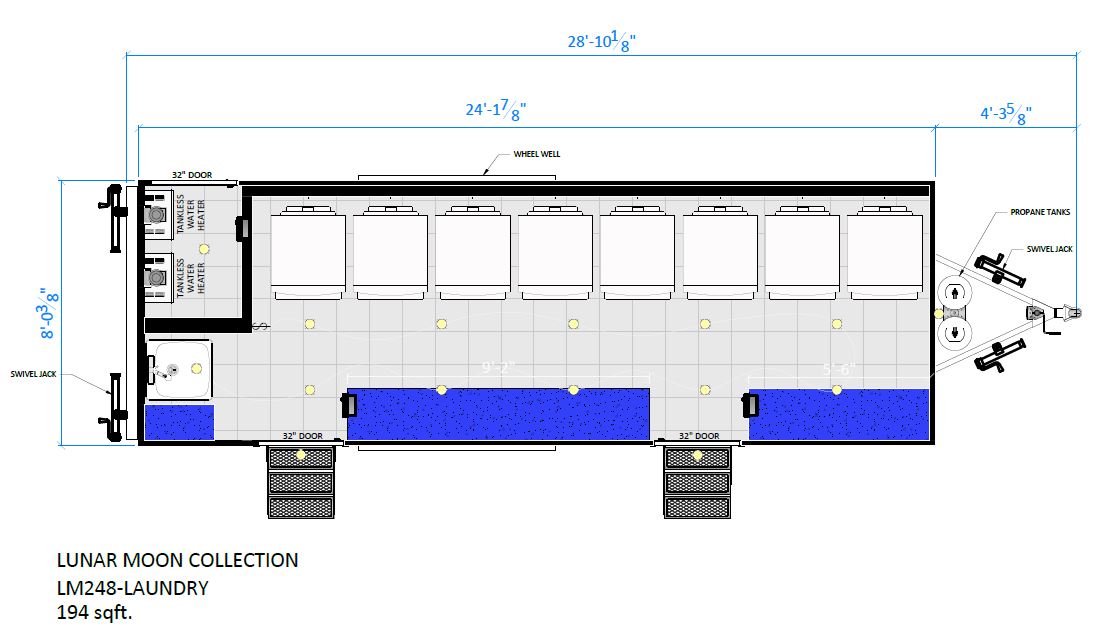

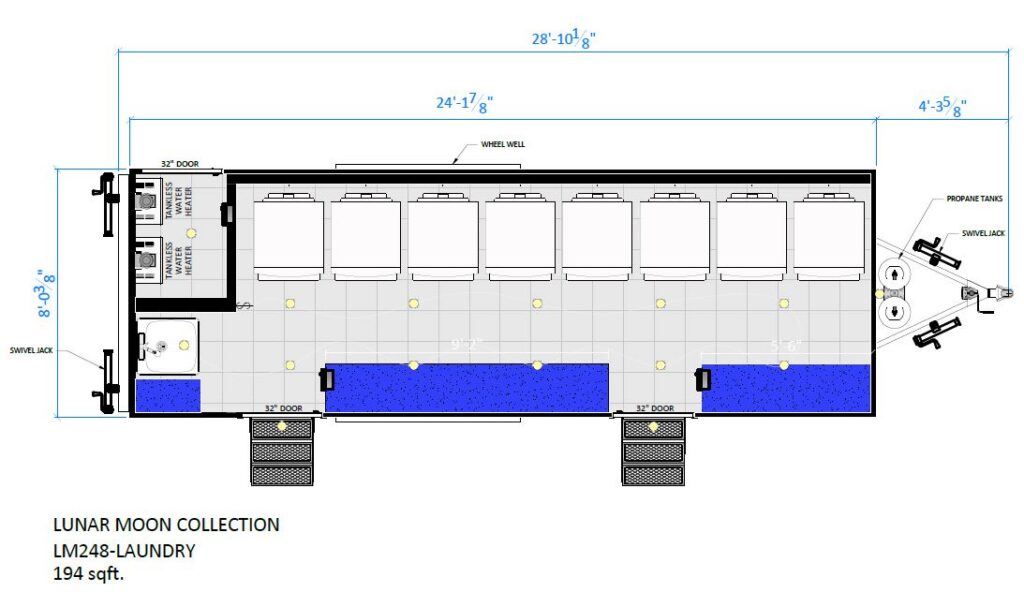

  • Laundry
  • Living Quarters
  • Offices
  • Command Centres
  • Custom Builds Available
  • Industrial Grade Flooring Throughout
  • Steel or Composite Partition Walls
  • LED Lighting Throughout
  • Tissue & Hand Towel Holders
  • All Aluminum Entrance Door(s)
  • High Visibility Exterior Lighting
  • Available Fold-Up Stairs at the Entrance
  • Heavy Duty Steel Chassis & A-Frame



1 – Year
Factory consumer product warranty

5 – Year
Limited warranty for components and performance relating to structural integrity, weather penetration, electrical distribution system, plumbing and heating delivery systems, window and door performance. All Trailers are manufactured by General Coach Canada are constructed in compliance with the stringent standards of the C.S.A – Z240 Recreational Vehicle Standard.

The manufacturer reserves the right to improve or modify the product, without notice or obligation, which may change materials, equipment, specifications or designs. Photographs and descriptions may contain some standard features and some optional extras. Some options may only be available on a pre-production basis.

Lunar Moon – Portable Restroom Trailers Specifications

All Lunar Moon washroom units are and built to last.

Chassis & Frame

  • Steel Frame – Galvanize Option
  • Single Torflex Axle 6’ Models
  • Double Torflex Axle 8’ Models
  • 5/16” Ball Hitch w/ Adjustable Plate
  • Electric Breaking System w/ Break Away Protection
  • 2,000 or 5,000 lb Stabilizer Jacks (x4)
  • 5,000 or 12,000 lb Front A-Frame Jack (x1)

Interior Design

  • Fiberglass Walls (White)
  • Pvc Wall & Ceiling Trims
  • Vinyl Wrapped Plywood Ceiling Material (Fiberglass Ceiling in Shower Models)
  • Stainless Steel Countertops
  • Stainless Steel Sink
  • Commercial Grade Vinyl Flooring

Exterior Design

  • 2” Vacuum Bonded Walls
  • High Gloss Gel Fiberglass Walls (White)
  • Azdel Composite Wall Backer
  • Entrance Doors w/ Automatic Closer and Dead Bolt Indicator
  • Fold-Up Entrance Step
  • Fold-Away Hand Rail
  • Bowed Aluminum Roof Trusses @ 16” Oc
  • 3/8” Plywood Roof Sheathing
  • Seamless Modular Roof Membrane

Electrical

  • 20amp Circuit Panel Box
  • Flex Power Cords w/ Twist Lock
  • Vinyl Backed Vanity Mirror
  • Led Pot Lighting Throughout (12v)
  • Led Entry Light (Per Door)
  • Power Exhaust Fan w/ Rain Sensor (Per Room)
  • 12v/110v Power Convertor
  • 13,500btu Roof Mount A/C – Ducted
  • Dot Led Safety & Light Package

Plumbing

  • 225gal Fresh Water Tank
  • Shur-Flo 12v Water Pump (X1)
  • Poly Waste Water Tank (Various Capacity)
  • Banjo Eye Waste Visual Check Point
  • Banjo Valve 3” Cleanout Point
  • 5gal 110v Electric Water Heater (Washroom Models)
  • Tankless Demand Water Heater (Shower Models)
  • Dometic 510 Foot Pedal Toilet
  • Sloan Waterless Urinal (If Applicable)
  • Moen Water Saver Metered Faucet

Convenience Package

  • Manual Soap Dispenser
  • Manual Towel Dispenser
  • Dual Roll Toilet Paper Dispenser
  • Sanitary Napkin Disposal (Optional)

Optional Items

  • Fold Down Aluminum Seat (Shower Models)
  • Wall Mount Sink (Shower Models)
  • Sloan Waterless Urinal
  • 5 Year General Coach Limited Structural Warranty (Non-Transferable)
