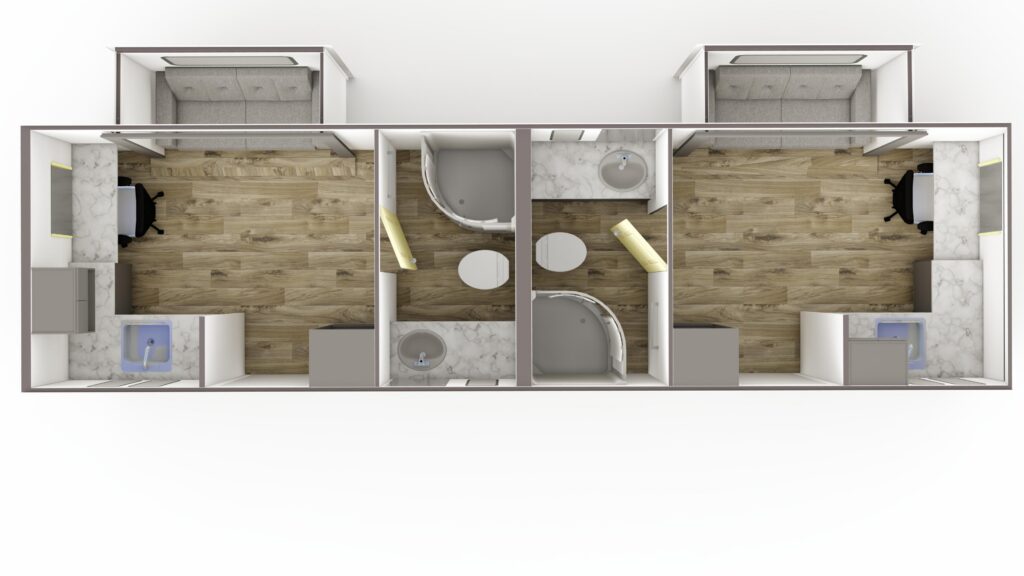

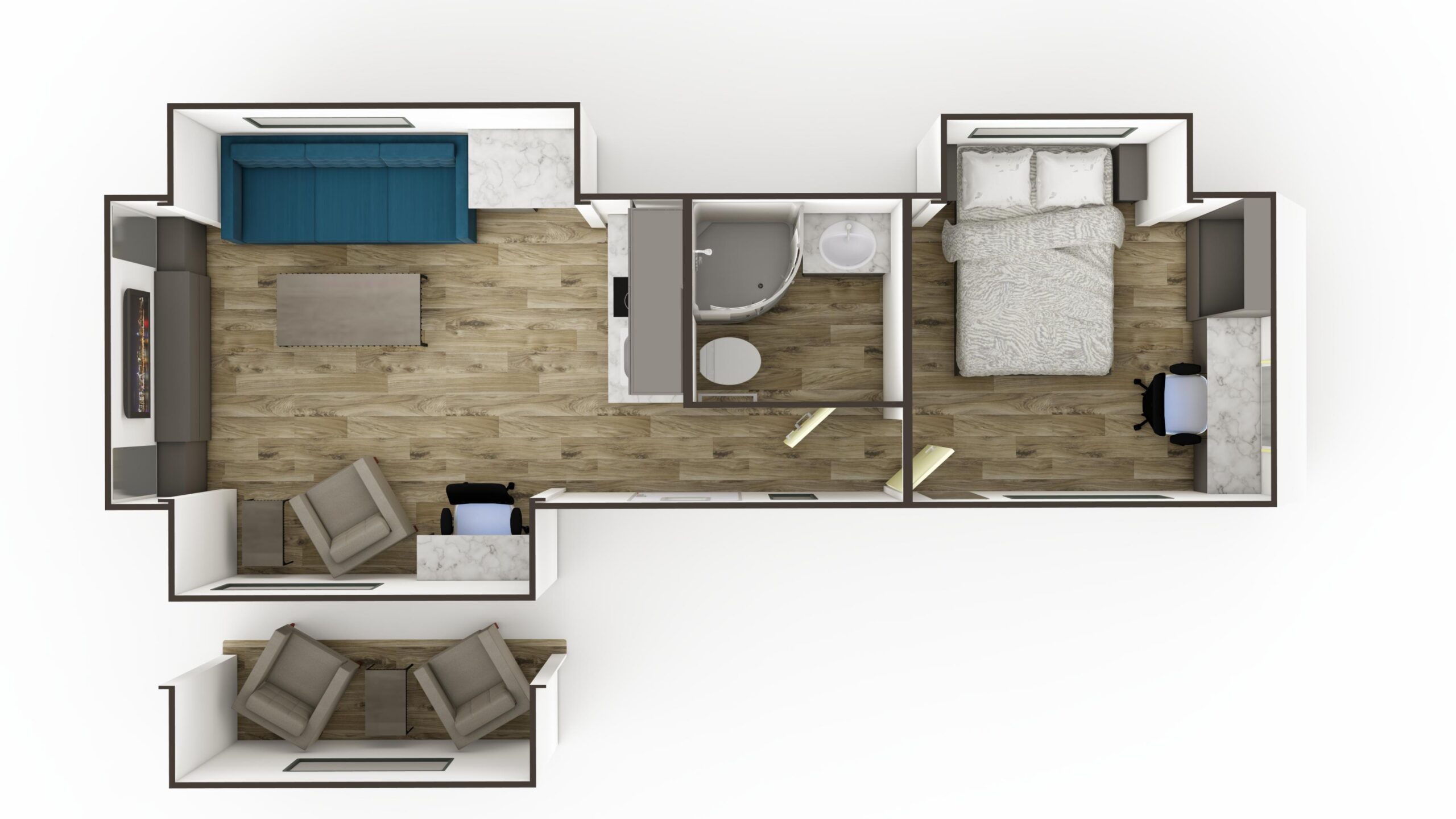

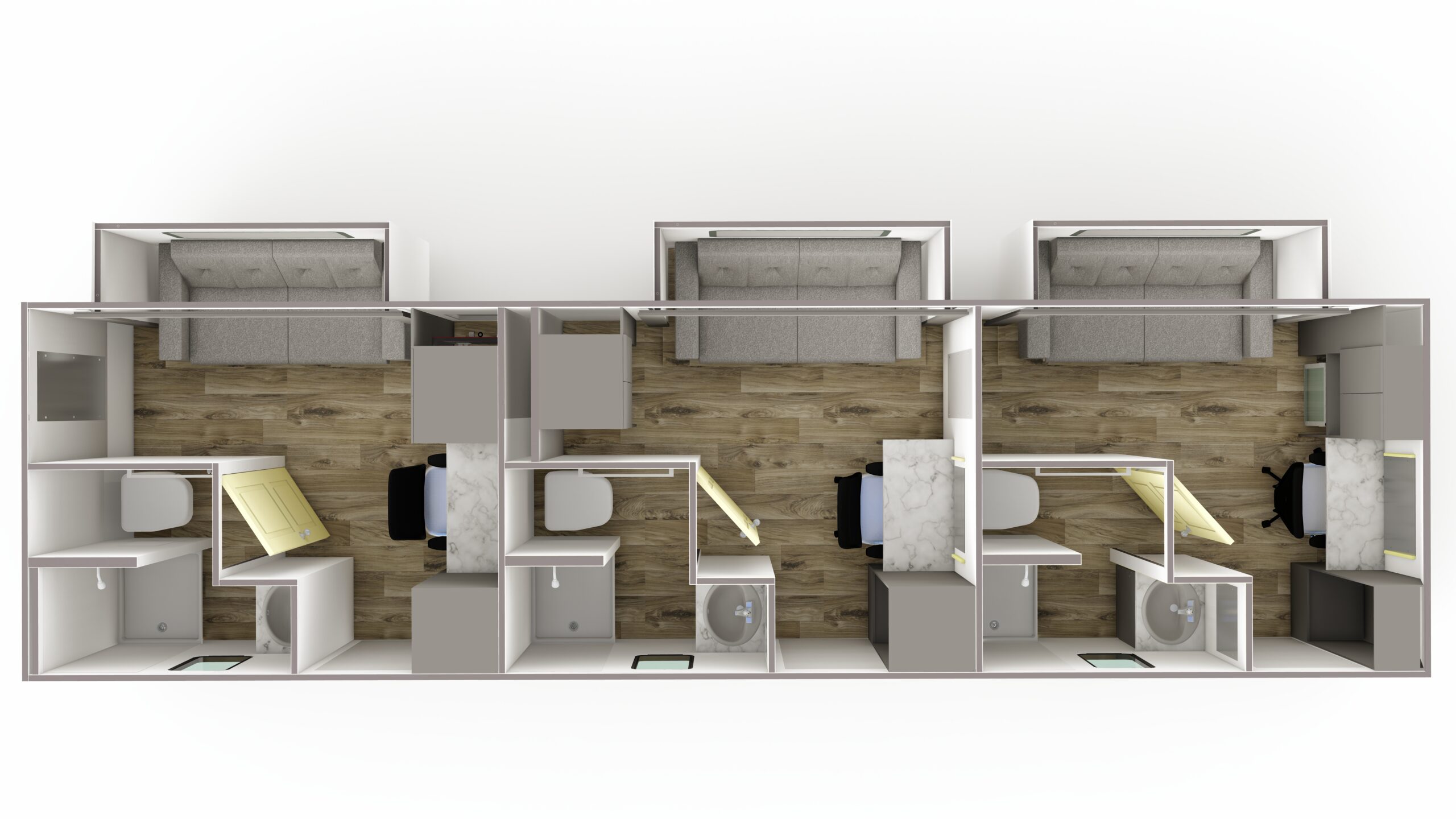

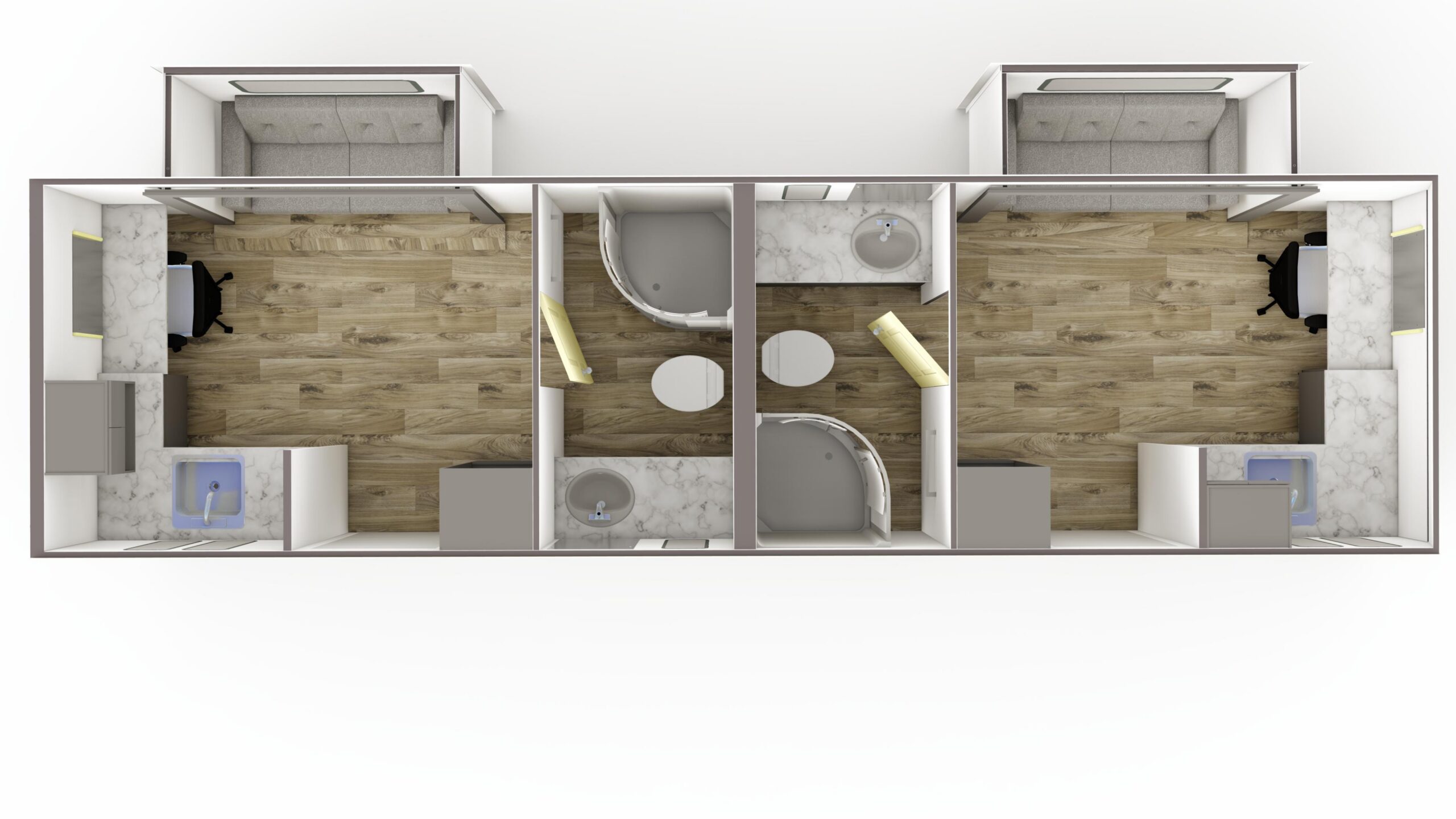

Browse Floor Plans
We currently offer a variety of floor plans that encompass the diverse needs of TV and movie production sets.
Impermeable Walls
Custom walls are vacuum-bonded for airtight quality. The use of Azdel®, a lightweight composite waterproof panel, ensures no wicking and delaminating of material.
Built Tough
Built for rugged use in a variety of locations.
Comfort & Style
Customize the interiors to suit your client needs
1 – Year
Factory consumer product warranty
5 – Year
Limited warranty for components and performance relating to structural integrity, weather penetration, electrical distribution system, plumbing and heating delivery systems, window and door performance. All Trailers are manufactured by General Coach Canada are constructed in compliance with the stringent standards of the C.S.A – Z240 Recreational Vehicle Standard.
The manufacturer reserves the right to improve or modify the product, without notice or obligation, which may change materials, equipment, specifications or designs. Photographs and descriptions may contain some standard features and some optional extras. Some options may only be available on a pre-production basis.
Citation Series - North American Specifications
Citation Series Theatrical Trailers are manufactured to CSA z240 Standards.
Construction
- 82” Sidewall Height
- Floor 2×4 Frame with R20 Insulation
- Roof Wood Trusses with R8 Insulation
- Vinyl Flooring
- 2” Seamless Bonded Walls with Aluminum Framing – Vinyl Interior
- Fiberglass Gelcoat Exterior with Azdel Backer
- In Frame Slide Outs with Flush Floor Transitions
Windows And Doors
- Square Non-Friction Entrance Door, No Screen
- Fold Out Step and Extended Grab Bar
- Slide Toppers
- Cordless Roller Shade
- Satin Nickel Hardware
Heating And Cooling
- 5-10 Gal 240V 3000W Water Heater
- 35,000 BTU Furnace (Optional)
- Propane Furnace (Optional)
- 120V Dometic 13,500 BTU Air Conditioning
- Napoleon Fireplace (Single Artist)
Electrical
- 50 Amp Power Chord
- Smoke Alarm 9V
- 100A 48 Circuit Panel/DC Distribution Panel
- 55A 120V Converter
- 12V LED 4” Pot Lights
- 12V LED Light Over Entry Door and Front End Wall
Plumbing
- 35 Gal Fresh Water Tank (Most Floor Plans)
- 35 Gal Black and Grey Waste Tanks (Most Floor Plans)
- 12V Shurflo Water Pump
Kitchen & Bathroom
- Rolltop Countertops
- Modular Residential Melamine Cabinets
- Modern Flat Panel Cabinet Doors
- Moen Faucets
- Induction Cooktop (Single Artist)
- 1.0 Cuft Stainless Steel Microwave
- Stainless Steel Beverage Fridge
- 12V Bath Fan (Manual Lid)
- Neo Round Shower with Glass Door (Three Position Shower Pan with Curtain)
Frame & Axels
- Tube Chassis with Epoxy Paint
- 2 x 5200lbs Torflex Axles
- Tires 3400lbs With Aluminum Rim
- 14,000lb Hitch
- 7500lb Scissor Stabilizer Jacks (X4)
- White Embossed Skirting
- Fiberglass Wheel Fender
